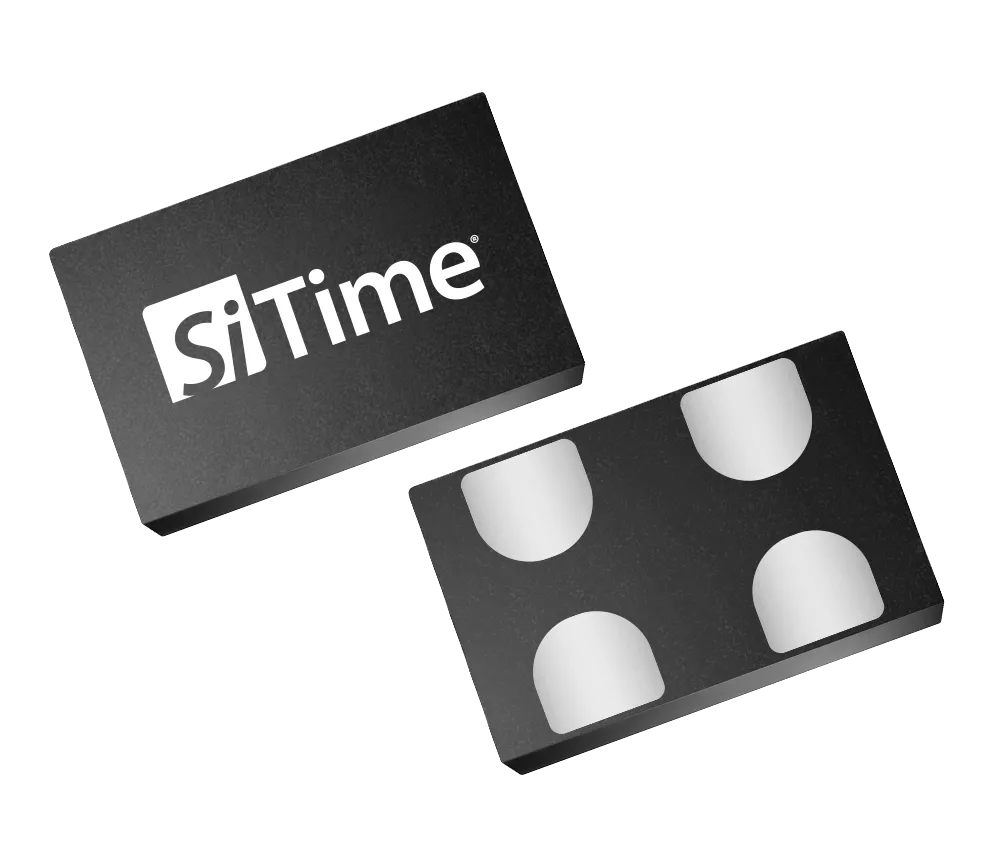

| The SiTime SiT1602B is a low-power fixed-frequency MEMS oscillator for portable, consumer, storage, and networking systems. It offers 52 standard frequencies from 3.57 to 77.76 MHz with an LVCMOS/HCMOS-compatible output. Total frequency-stability options of ±20, ±25, and ±50 ppm include initial tolerance at 25°C, first-year aging at 25°C, and variation over operating temperature, rated supply voltage, and load. Designers can specify extended commercial operation from -20°C to +70°C or industrial operation from -40°C to +85°C. Fixed supply-voltage options include 1.8, 2.5, 2.8, 3.0, and 3.3 V, while continuous-range options span 2.25 V to 3.63 V and 1.62 V to 3.63 V. At 1.8 V and 20 MHz with no output load, the device draws 3.5 mA typical active current. In standby mode with pin 1 pulled low, typical standby current is 0.6 µA at a 1.8 V supply. FlexEdge™ configurable drive strength adjusts output rise and fall times for the capacitive load, helping reduce oscillator-generated EMI. The gated output reaches rated frequency stability on the first pulse and avoids runt pulses and startup glitches. Five industry-standard package sizes, pin-to-pin compatibility with quartz oscillators, and Time Machine II support simplify qualification, prototyping, and inventory planning. |
 |
Shortform Information about the specification is available here
| The SiTime SiT8008B is a low-power programmable MEMS oscillator for consumer, networking, industrial, medical, and storage systems. It supports any frequency from 1 to 110 MHz with six decimal places of accuracy and an LVCMOS/HCMOS-compatible output. Total frequency-stability options of ±20, ±25, and ±50 ppm include initial tolerance at 25°C, first-year aging at 25°C, and variation over operating temperature, rated supply voltage, and load. Designers can specify extended commercial operation from -20°C to +70°C or industrial operation from -40°C to +85°C. Fixed supply-voltage options include 1.8, 2.5, 2.8, 3.0, and 3.3 V, while continuous-range options span 2.25 V to 3.63 V and 1.62 V to 3.63 V. At 1.8 V and 20 MHz with no output load, the device draws 3.5 mA typical active current. Standby mode shuts down the internal circuitry and reduces typical current to less than 1 µA at 1.8 V. Startup and resume times remain within 5 ms. FlexEdge™ configurable drive strength lets designers adjust output rise and fall times for the capacitive load, reducing oscillator-generated EMI and supporting capacitive loads of 60 pF or higher with the appropriate drive-strength setting. The gated output reaches rated frequency stability on the first pulse and avoids runt pulses and startup glitches. Five industry-standard package sizes, pin-to-pin compatibility with quartz oscillators, and Time Machine II support simplify qualification, prototyping, and inventory planning. |
|
Shortform Information about the specification is available here
Applications
• Digital still cameras and camcorders
• Portable media players and mobile TV tuners
• Tablets, e-readers, and portable gaming systems
• Portable storage and solid-state drives
• IP cameras and digital video recorders
• Portable-navigation audio and processor clocking
• FM modules
• Non-baseband mobile-phone clocking, including camera modules and multimedia chipsets
• GPON and EPON optical-access equipment
• USB, SATA, SAS, and FireWire interfaces
• 100M, 1G, and 10G Ethernet equipment
• Portable test equipment and other handheld systems
• Retail electronics
• Portable media players and mobile TV tuners
• Tablets, e-readers, and portable gaming systems
• Portable storage and solid-state drives
• IP cameras and digital video recorders
• Portable-navigation audio and processor clocking
• FM modules
• Non-baseband mobile-phone clocking, including camera modules and multimedia chipsets
• GPON and EPON optical-access equipment
• USB, SATA, SAS, and FireWire interfaces
• 100M, 1G, and 10G Ethernet equipment
• Portable test equipment and other handheld systems
• Retail electronics
Features
• Any frequency from 1 to 110 MHz with six decimal places of accuracy (SiT8008)
• 52 standard frequencies from 3.57 to 77.76 MHz (SiT1602)
• Total frequency stability of ±20, ±25, or ±50 ppm
• Extended commercial temperature range: -20°C to +70°C
• Industrial temperature range: -40°C to +85°C
• Fixed 1.8, 2.5, 2.8, 3.0, and 3.3 V supply options
• Continuous 2.25 V to 3.63 V and 1.62 V to 3.63 V supply options
• 3.5 mA typical active current at 1.8 V and 20 MHz with no output load
• Typical standby current below 1 µA at 1.8 V; 5 ms maximum resume time
• 45% to 55% duty cycle and LVCMOS/HCMOS-compatible output
• 0.5 ps typical integrated RMS phase jitter at 75 MHz over a 900 kHz to 7.5 MHz integration bandwidth for fixed-voltage and 2.25 V to 3.63 V supply options
• FlexEdge™ configurable drive strength for rise/fall-time and EMI control
• Programmable pin 1 functions: output enable, standby, or no connect
• Gated output with first-pulse frequency accuracy and no runt or startup-glitch pulses
• 2.0 × 1.6, 2.5 × 2.0, 3.2 × 2.5, 5.0 × 3.2, and 7.0 × 5.0 mm packages
• Mechanical shock and vibration compliance to MIL-STD-883F Methods 2002 and 2007
• RoHS and REACH compliant; Pb-free, halogen-free, and antimony-free
• 52 standard frequencies from 3.57 to 77.76 MHz (SiT1602)
• Total frequency stability of ±20, ±25, or ±50 ppm
• Extended commercial temperature range: -20°C to +70°C
• Industrial temperature range: -40°C to +85°C
• Fixed 1.8, 2.5, 2.8, 3.0, and 3.3 V supply options
• Continuous 2.25 V to 3.63 V and 1.62 V to 3.63 V supply options
• 3.5 mA typical active current at 1.8 V and 20 MHz with no output load
• Typical standby current below 1 µA at 1.8 V; 5 ms maximum resume time
• 45% to 55% duty cycle and LVCMOS/HCMOS-compatible output
• 0.5 ps typical integrated RMS phase jitter at 75 MHz over a 900 kHz to 7.5 MHz integration bandwidth for fixed-voltage and 2.25 V to 3.63 V supply options
• FlexEdge™ configurable drive strength for rise/fall-time and EMI control
• Programmable pin 1 functions: output enable, standby, or no connect
• Gated output with first-pulse frequency accuracy and no runt or startup-glitch pulses
• 2.0 × 1.6, 2.5 × 2.0, 3.2 × 2.5, 5.0 × 3.2, and 7.0 × 5.0 mm packages
• Mechanical shock and vibration compliance to MIL-STD-883F Methods 2002 and 2007
• RoHS and REACH compliant; Pb-free, halogen-free, and antimony-free
