Product Series

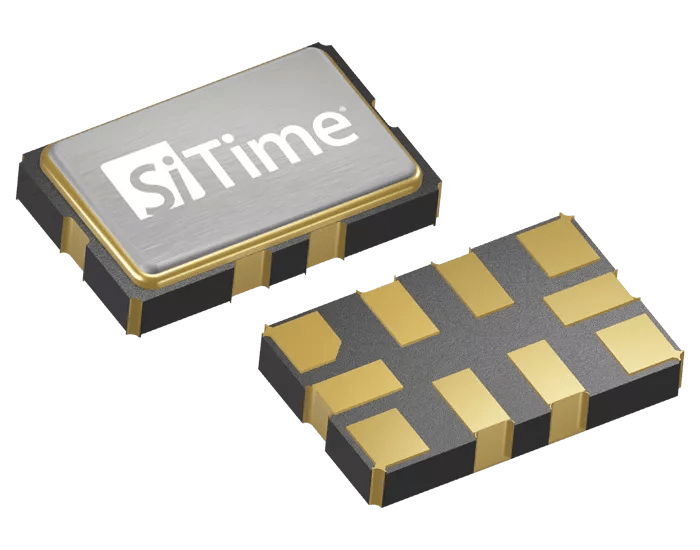

| The SiT5356 delivers ±100 ppb frequency stability, while the SiT5358 achieves ±50 ppb from -40°C to +105°C. Both devices reach 3×10⁻¹¹ ADEV at a 10-second averaging interval and maintain a ±1 ppb/°C frequency slope at a 0.5°C/min thermal ramp. Phase noise under vibration improves by 20× relative to quartz, reducing link drops in high-vibration environments. Power-supply noise rejection of 0.2 ps/mV removes the need for a dedicated LDO. Factory programmability supports frequencies from 1 to 60 MHz, pull ranges from ±6.25 to ±3200 ppm, and supply voltages from 2.25 to 3.63 V, eliminating quartz-related lead times and per-configuration costs. |  |
Shortform Information about the specification is available here
| The SiT5811 OCXO targets network synchronization, telecom, and precision instrumentation applications with strict holdover requirements. It delivers ±1 ppb over-temperature stability from -40°C to +95°C, a ±0.01 ppb/°C typical frequency slope (ΔF/ΔT), and 4×10⁻¹² HDEV at a 10-second averaging interval. Holdover extends to 12 hours under real-world conditions that include an 8°C temperature change, the ITU-T recommended profile, and 1 m/s airflow, with ±0.1 ppb/day aging. TimeFabric™ Holdover Extension can extend holdover to 24 hours for extended synchronization continuity. At 9.0 × 7.0 × 3.6 mm and 420 mW steady-state power, the SiT5811 reduces volume by 25× and power by 3× relative to comparable quartz OCXOs. |  |
Shortform Information about the specification is available here
Applications
• SONET/SDH Stratum 3
• Synchronous Ethernet (G.8262, Options 1 and 2)
• 5G infrastructure (RRH, DU)
• ITU-T G.8273.2 Class D
• Small cells
• Data center switches and routers
• Core and edge routers
• Optical transport (OTN, OLT)
• IEEE 1588 boundary clocks and grandmasters
• GNSS receivers and GNSS-disciplined timing modules
• Timing servers
• Cable modem termination systems (CMTS)
• COSPAS-SARSAT
• Broadband satellite
• LiDAR and radar
• Test and measurement
• Smart meters
• Wireless and backhaul
• Synchronous Ethernet (G.8262, Options 1 and 2)
• 5G infrastructure (RRH, DU)
• ITU-T G.8273.2 Class D
• Small cells
• Data center switches and routers
• Core and edge routers
• Optical transport (OTN, OLT)
• IEEE 1588 boundary clocks and grandmasters
• GNSS receivers and GNSS-disciplined timing modules
• Timing servers
• Cable modem termination systems (CMTS)
• COSPAS-SARSAT
• Broadband satellite
• LiDAR and radar
• Test and measurement
• Smart meters
• Wireless and backhaul
Features
• DualMEMS™ and TurboCompensation™ temperature sensing for dynamic stability (SiT5356, SiT5358)
• ±100 ppb over-temperature stability from -40°C to +105°C (SiT5356)
• ±50 ppb over-temperature stability from -40°C to +105°C (SiT5358)
• GR-1244 Stratum 3 compliant (SiT5356, SiT5358)
• 3×10⁻¹¹ ADEV at 10-second averaging interval (SiT5356, SiT5358)
• ±1 ppb/°C frequency slope at 0.5°C/min thermal ramp (SiT5356, SiT5358)
• 20× improvement in phase noise under vibration vs. quartz (SiT5356, SiT5358)
• Power-supply noise rejection (0.2 ps/mV); no dedicated LDO required (SiT5356, SiT5358)
• ±1 ppb over-temperature stability from -40°C to +95°C (SiT5811)
• ±0.01 ppb/°C typical frequency slope (ΔF/ΔT) (SiT5811)
• 12-hour holdover under real-world conditions (SiT5811)
• 4×10⁻¹² HDEV at 10-second averaging interval (SiT5811)
• ±0.1 ppb/day aging (SiT5811)
• TimeFabric™ Holdover Extension to 24 hours (SiT5811)
• 25× lower volume and 3× lower power vs. quartz OCXOs (SiT5811)
• Factory-programmable frequency: 1 to 60 MHz (SiT5356, SiT5358); 10 to 60 MHz (SiT5811)
• Pull ranges from ±6.25 to ±3200 ppm (SiT5356, SiT5358); ±3.125 to ±400 ppm (SiT5811)
• I2C digital frequency tuning (SiT5356, SiT5358); I2C and SPI with 5×10⁻¹⁴ resolution (SiT5811)
• No activity dips or microjumps under thermal shock or fast temperature ramps
• 1 billion hours MTBF (SiT5356, SiT5358)
• LVCMOS or clipped-sine output
• ±100 ppb over-temperature stability from -40°C to +105°C (SiT5356)
• ±50 ppb over-temperature stability from -40°C to +105°C (SiT5358)
• GR-1244 Stratum 3 compliant (SiT5356, SiT5358)
• 3×10⁻¹¹ ADEV at 10-second averaging interval (SiT5356, SiT5358)
• ±1 ppb/°C frequency slope at 0.5°C/min thermal ramp (SiT5356, SiT5358)
• 20× improvement in phase noise under vibration vs. quartz (SiT5356, SiT5358)
• Power-supply noise rejection (0.2 ps/mV); no dedicated LDO required (SiT5356, SiT5358)
• ±1 ppb over-temperature stability from -40°C to +95°C (SiT5811)
• ±0.01 ppb/°C typical frequency slope (ΔF/ΔT) (SiT5811)
• 12-hour holdover under real-world conditions (SiT5811)
• 4×10⁻¹² HDEV at 10-second averaging interval (SiT5811)
• ±0.1 ppb/day aging (SiT5811)
• TimeFabric™ Holdover Extension to 24 hours (SiT5811)
• 25× lower volume and 3× lower power vs. quartz OCXOs (SiT5811)
• Factory-programmable frequency: 1 to 60 MHz (SiT5356, SiT5358); 10 to 60 MHz (SiT5811)
• Pull ranges from ±6.25 to ±3200 ppm (SiT5356, SiT5358); ±3.125 to ±400 ppm (SiT5811)
• I2C digital frequency tuning (SiT5356, SiT5358); I2C and SPI with 5×10⁻¹⁴ resolution (SiT5811)
• No activity dips or microjumps under thermal shock or fast temperature ramps
• 1 billion hours MTBF (SiT5356, SiT5358)
• LVCMOS or clipped-sine output
