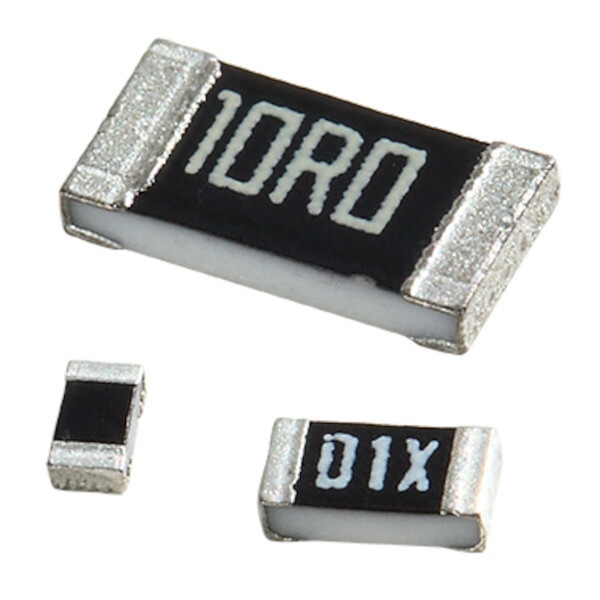

Introducing the VT Series, a product known for its high voltage capabilities, precision, and stability. This series offers 1206 case sizes, operates at 1/4 W rated power, and covers a resistance range from 162K Ω to 1.5M Ω. It boasts narrow tolerance options of ±0.1%, ±0.25%, ±0.5%, and ±1%, along with a low TCR (Temperature Coefficient of Resistance) of ±10, ±25, and ±50 ppm/°C.
The VT series is engineered to maintain exceptional stability and reliability even in high operating voltage environments. Its unique laser trimming design sets it apart from other thin film products in the market, providing superior voltage endurance. Additionally, the passivation design incorporated into this series ensures high resistance stability in diverse environmental conditions. These qualities make the VT series well-suited for applications in automotive electronics, telecommunications, industrial and medical equipment, test and measuring equipment, and power systems.
Features & Reliability Requirements
The VT series is engineered to maintain exceptional stability and reliability even in high operating voltage environments. Its unique laser trimming design sets it apart from other thin film products in the market, providing superior voltage endurance. Additionally, the passivation design incorporated into this series ensures high resistance stability in diverse environmental conditions. These qualities make the VT series well-suited for applications in automotive electronics, telecommunications, industrial and medical equipment, test and measuring equipment, and power systems.
Features & Reliability Requirements
- AEC-Q200 qualified
- Superior resistance against sulfur-containing and moisture environments
- High precision & stability
- Low TCR, low electrical noise
- Temperature Cycling: ΔR/R ±0.1%
- Anti-FOS (105°C, 750 hours): ΔR/R ±2%
- Life/Endurance (70°C): ΔR/R ±0.1%
- Biased Humidity (85°C/85% RH): ΔR/R ±0.1%
