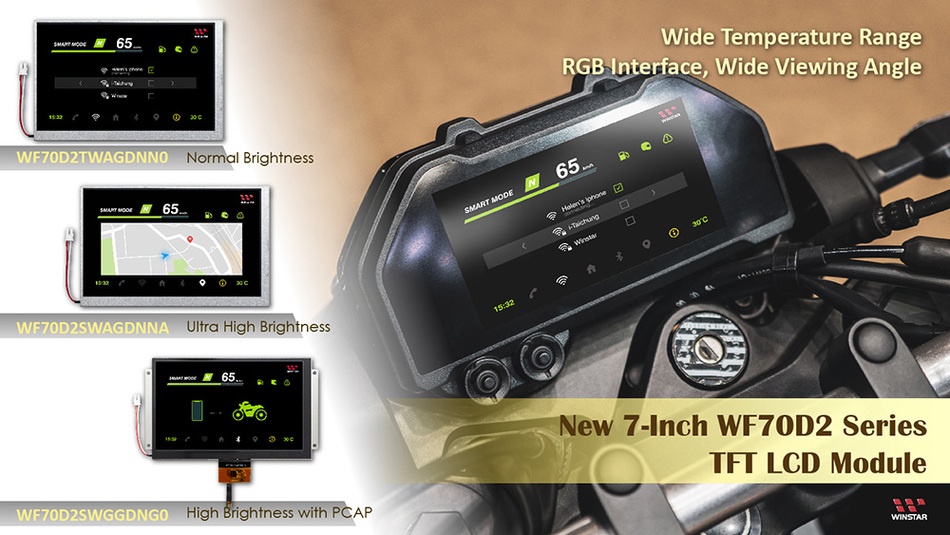

WF70D2 Series: 7" IPS TFT LCD Displays with Wide Temperature Range
The WF70D2 series features a 7-inch IPS TFT LCD module with a resolution of 800x480 pixels and an aspect ratio of 15:9. Operating within a supply voltage range of 2.9V to 3.6V (typically 3.3V), this module is designed for reliable performance in temperatures from -30°C to +80°C.
The WF70D2 offers superior wide viewing angles and enhanced visual clarity compared to the TN glass used in the WF70H and WF70C4 series. It is very suitable to replace the WF70H/WF70C4 series, maintaining identical pin definitions.
Normal Brightness:
Applications:
Ideal for washing machines, dryers, medical equipment, and industrial displays, where high visibility and robust temperature tolerance are essential.Features:
Provides sufficient brightness, excellent viewing angles, and strong temperature resilience.Ultra High Brightness:
Applications:
Ideal for demanding environments such as motorcycle dashboards, access control systems, outdoor charging stations, medical equipment, industrial displays, mining equipment control panels, construction site equipment, farm automation systems, and more.Features:
Delivers enhanced visibility in bright conditions, with wide viewing angles and excellent temperature tolerance.Projected Capacitive Touch Panel (PCAP):
Applications:
Ideal for interactive applications such as motorcycle dashboards, access control systems, outdoor charging stations, medical equipment, industrial displays, mining equipment control panels, construction site equipment, farm automation systems, and more.Features:
Integrates high brightness with touch functionality, offering wide viewing angles and robust temperature tolerance.| Model No. | WF70D2TWAGDNN0 | WF70D2SWAGDNNA | WF70D2SWGGDNG0 |
|---|---|---|---|
| Picture |  |
|
 |
| Diagonal Size | 7-inch | 7-inch | 7-inch |
| Resolution | 800×480 dots | 800×480 dots | 800×480 dots |
| Module Dimensions | 165×104.6×6.8 mm | 165×104.6×6.8 mm | 181.2×105.4×9.8 mm |
| Active Area | 152.4×91.44 mm | 152.4×91.44 mm | 152.4×91.44 mm |
| Viewing Angle | 85/85/85/85 (IPS) | 85/85/85/85 (IPS) | 85/85/85/85 (IPS) |
| Driver IC | RM53010+RM57410 | RM53010+RM57410 | RM53010+RM57410 |
| Aspect Ratio | 15:9 | 15:9 | 15:9 |
| Interface | RGB | RGB | RGB |
| Touch Panel | /wo Touch Panel | /wo Touch Panel | PCTP |
| Surface | Anti-Glare | Anti-Glare | Glare |
| Brightness | 450 cd/m2 | 1700 cd/m2 | 1000 cd/m2 |
| Operating Temperature | -30~+80℃ | -30~+80℃ | -30~+80℃ |
| PCAP Driver IC | — | — | ILI2130 |
| PCAP Interface | — | — | I2C |
