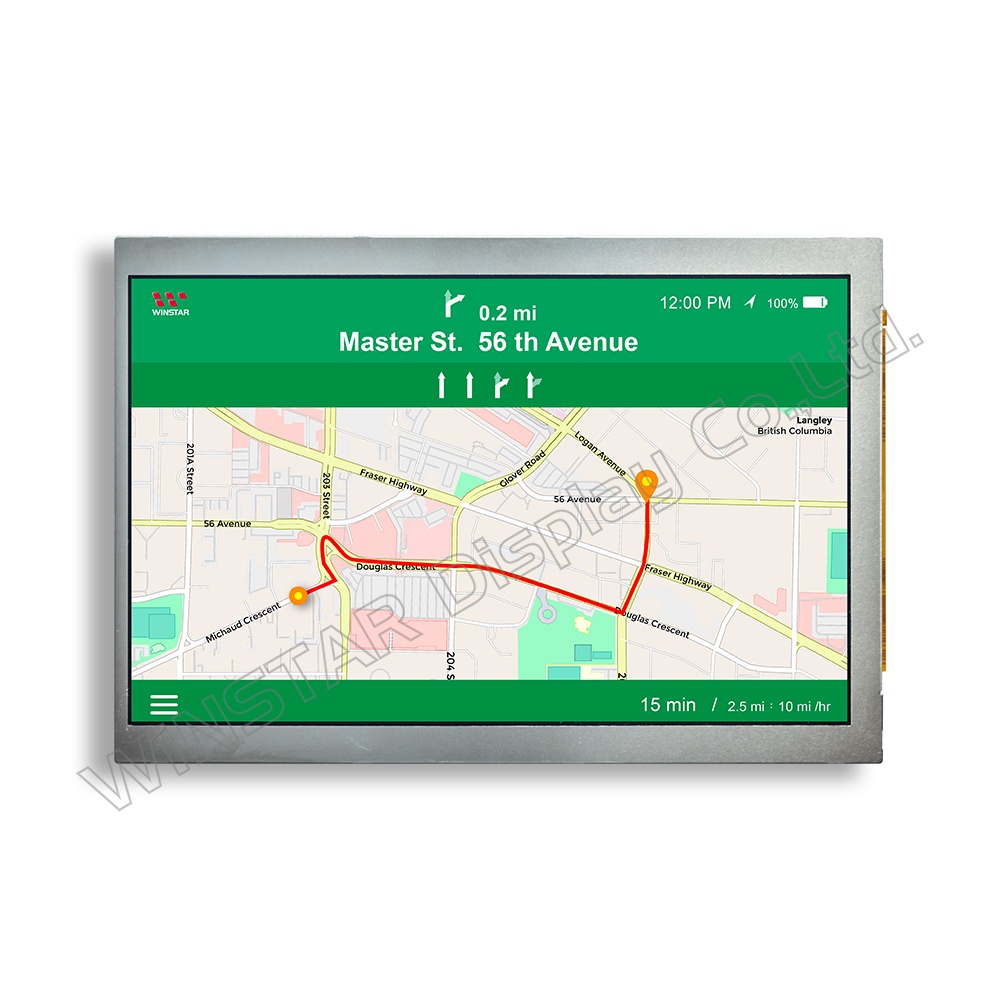

Introducing the WF70C6TYAB5MNN0, a 7-inch TFT LCD display with IPS technology, engineered for expansive viewing angles (left 80/right 80/top 80/bottom 80 degrees). This sleek display has a seamless design, absent of frame screw holes and a control board, while delivering a crisp resolution of 1200x1920 dots. Compact in size, the module measures 38.2 x 186.62 mm, with an aspect ratio of 10:16. Its color arrangement mode employs RGB-STRIPE, with driving IC powered by the HX8279-D01*2 Cascade, leveraging the MIPI DSI interface for seamless integration.
Versatile and reliable, the WF70C6TYAB5MNN0 finds widespread application as an external monitor for cameras or various external displays. With support for full-color display and exceptional visual clarity, it proves ideal for navigation scenarios and beyond. Operating within a power supply voltage range of 1.7V to 2.0V (typical value of 1.8V), this display adapts to diverse setups. Furthermore, its robust design withstands temperatures ranging from -20 to +70 °C during operation, with a storage capacity resilient from -30 to +80°C, ensuring reliability in challenging environments.
Versatile and reliable, the WF70C6TYAB5MNN0 finds widespread application as an external monitor for cameras or various external displays. With support for full-color display and exceptional visual clarity, it proves ideal for navigation scenarios and beyond. Operating within a power supply voltage range of 1.7V to 2.0V (typical value of 1.8V), this display adapts to diverse setups. Furthermore, its robust design withstands temperatures ranging from -20 to +70 °C during operation, with a storage capacity resilient from -30 to +80°C, ensuring reliability in challenging environments.
Technical Specifications:
- Size : 7-inch (Portrait mode)
- Resolution : 1200 x 1920 dots
- View Direction : IPS
- Interface : MIPI DSI
- Driver IC : HX8279-D01*2 Cascade
- Control-Board : No
- Brightness(cd/m²): 500
- Frame Through Hole : No
- Touch Panel : No
