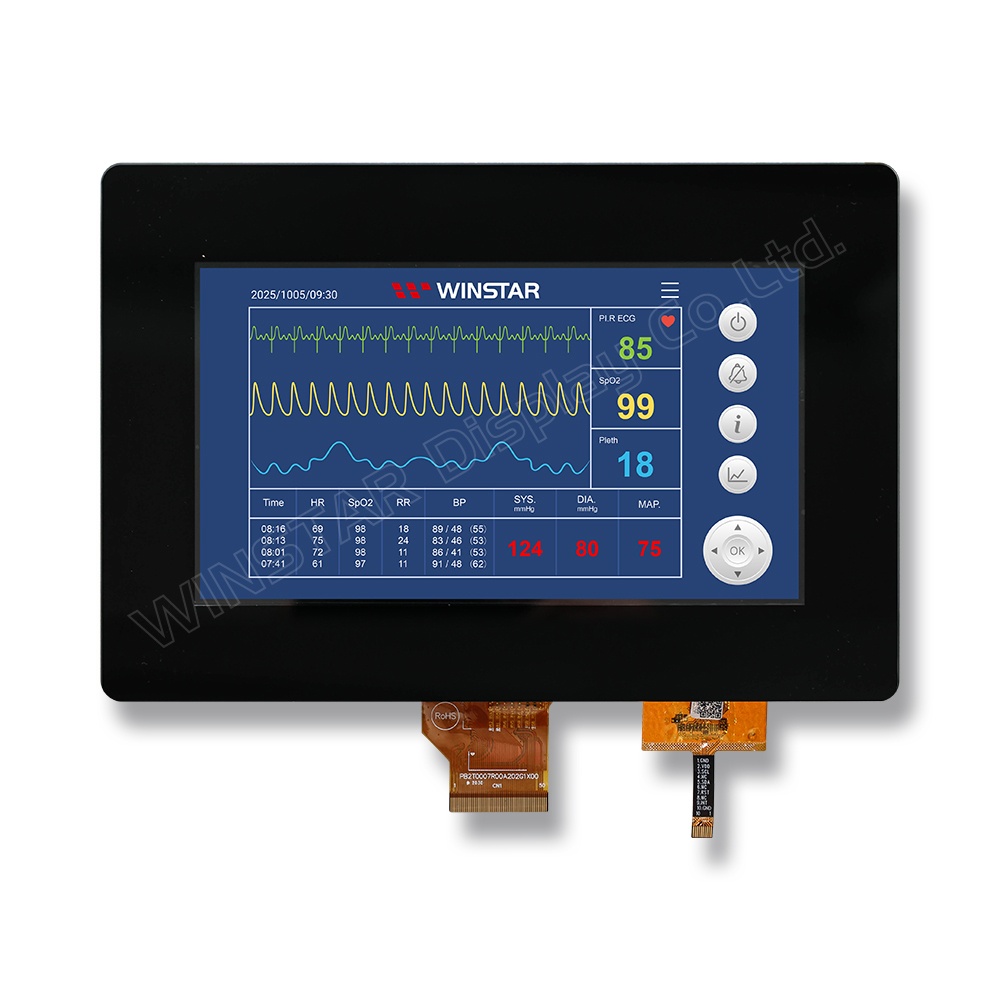

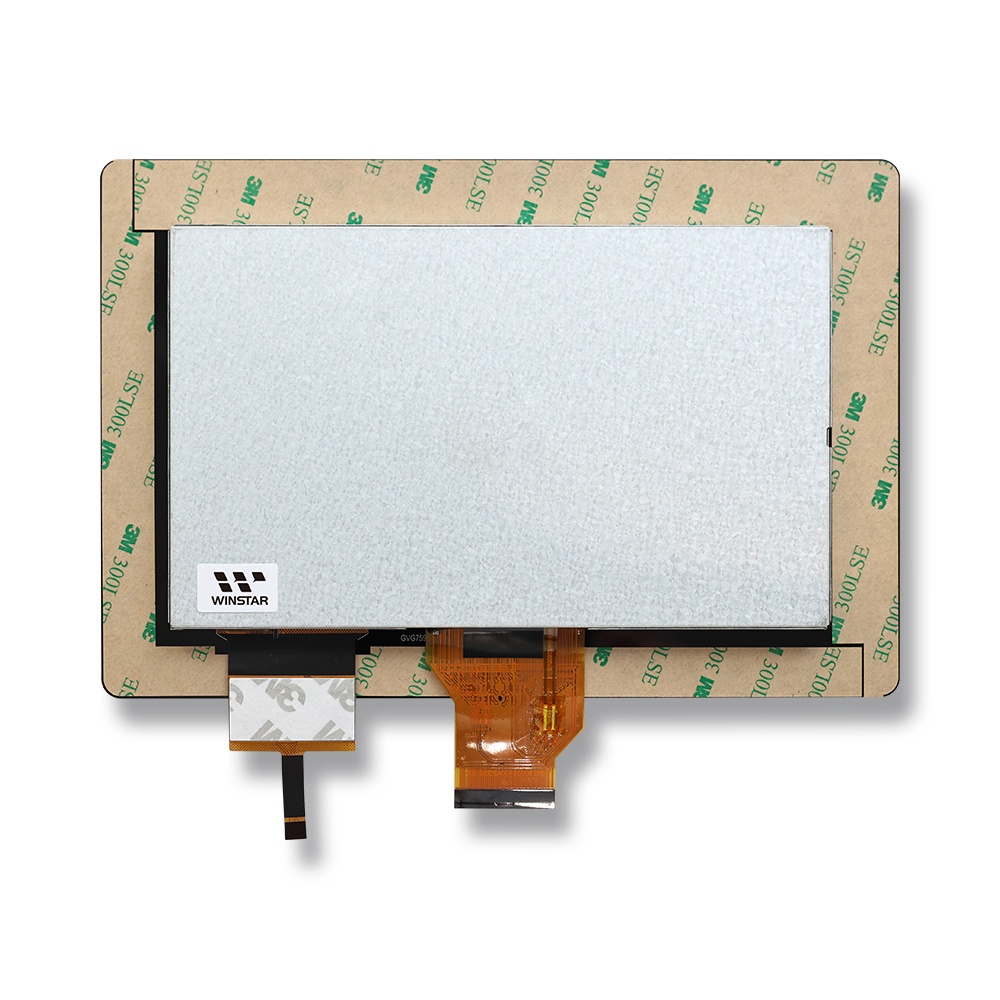

WINSTAR: 7inch Capacitive Touch Screen with 800x480 Resolution - WF70A2TIAGDNGB
Files
WF70A2TIAGDNGB- Especially designed for Medical and Industrial Applications this Display features a Capacitive Touch with Detection up to 5-Fingers. It features a resolution of 800x480 and a brightness of 350cm/m2. The LED Backlight has a lifespan of 50.000 hours.
Specification:
- Size : 7 inch
- Resolution : 800 x 480 dots
- View Direction : 12H
- Interface : RGB
- Driver IC : ST5623D+ST5091D
- Control-Board : No
- Brightness (cd/m²): 350
- Frame Through Hole: No
- Touch Panel : Projected capacitive touch (PCAP)
- PCAP IC : GT911
- Detect Point : 5 Fingers
