WINSTAR: 4.3inch IPS Display, WF43WTWAEDNN0, 480x272, 500cd/m2
Files
This module is well-suited for embedded systems, control panels, and instrumentation, providing excellent visual clarity and color performance under a variety of lighting conditions. Its robust design and wide temperature range make it ideal for industrial environments.

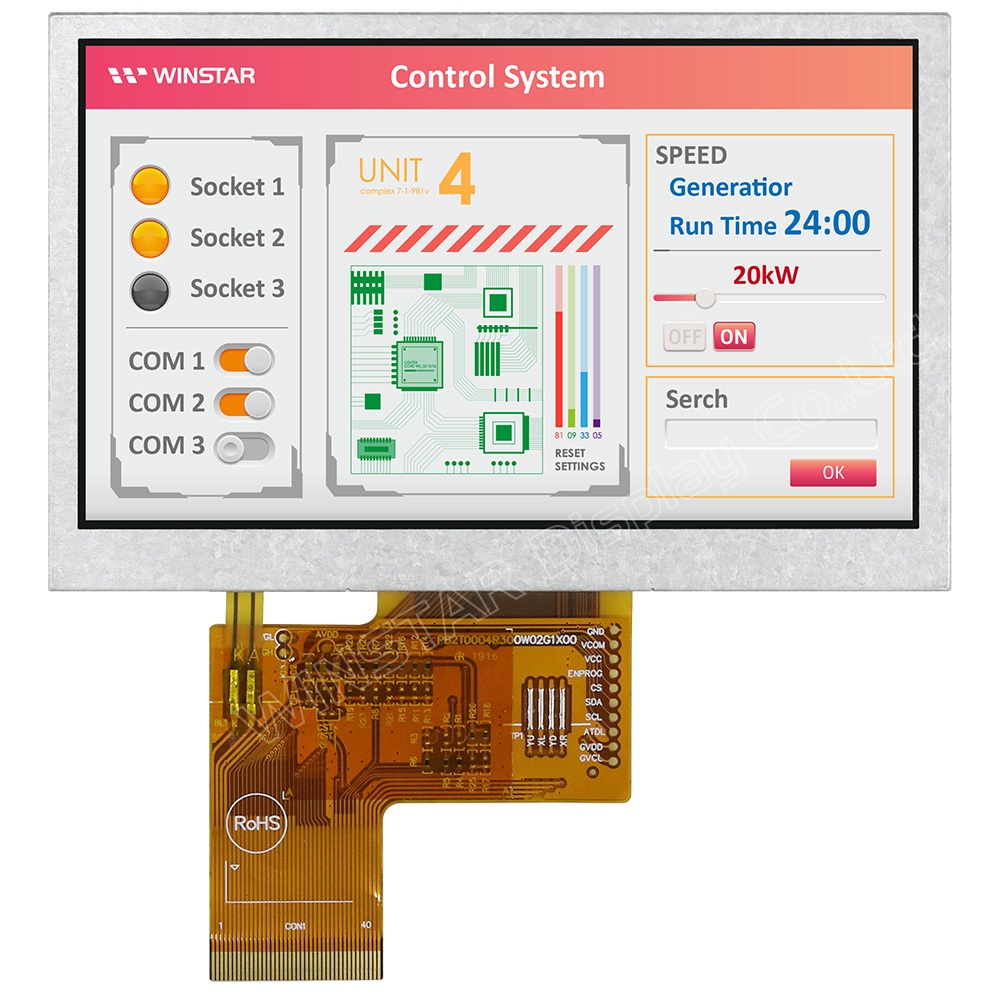

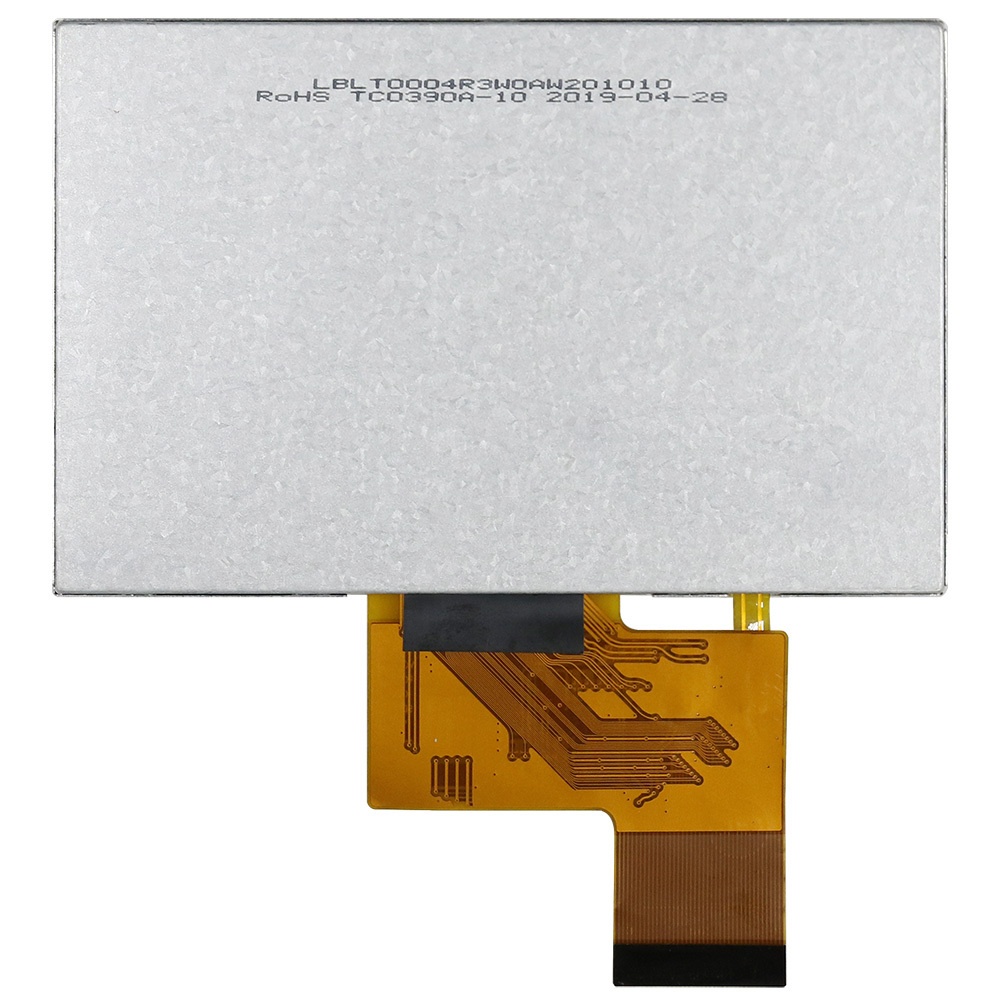

The WF43WTWAEDNN0 is a 4.3-inch color TFT LCD module from Winstar, designed for industrial and consumer applications requiring a compact, high-quality display.
This model features the following technical specifications:
This model features the following technical specifications:
- Display size: 4.3 inches diagonal
- Resolution: 480 x 272 pixels (WQVGA)
- Aspect ratio: 16:9
- Display type: Transmissive TFT with white LED backlight
- Interface: 24-bit RGB parallel interface
- Viewing angles: 70°/70°/50°/70° (Left/Right/Up/Down)
- Brightness: 500 cd/m² (typical)
- Contrast ratio: 800:1 (typical)
- Response time: 10/15 ms (typical rise/fall)
- Operating temperature: -20°C to 70°C
- Storage temperature: -30°C to 80°C
- Module dimensions: 105.5 mm x 67.2 mm x 4.05 mm
