WINSTAR: 4.3inch High Brightness IPS Display, WF43WSWAEDNN0, 480x272, 1000cd/m2
Files

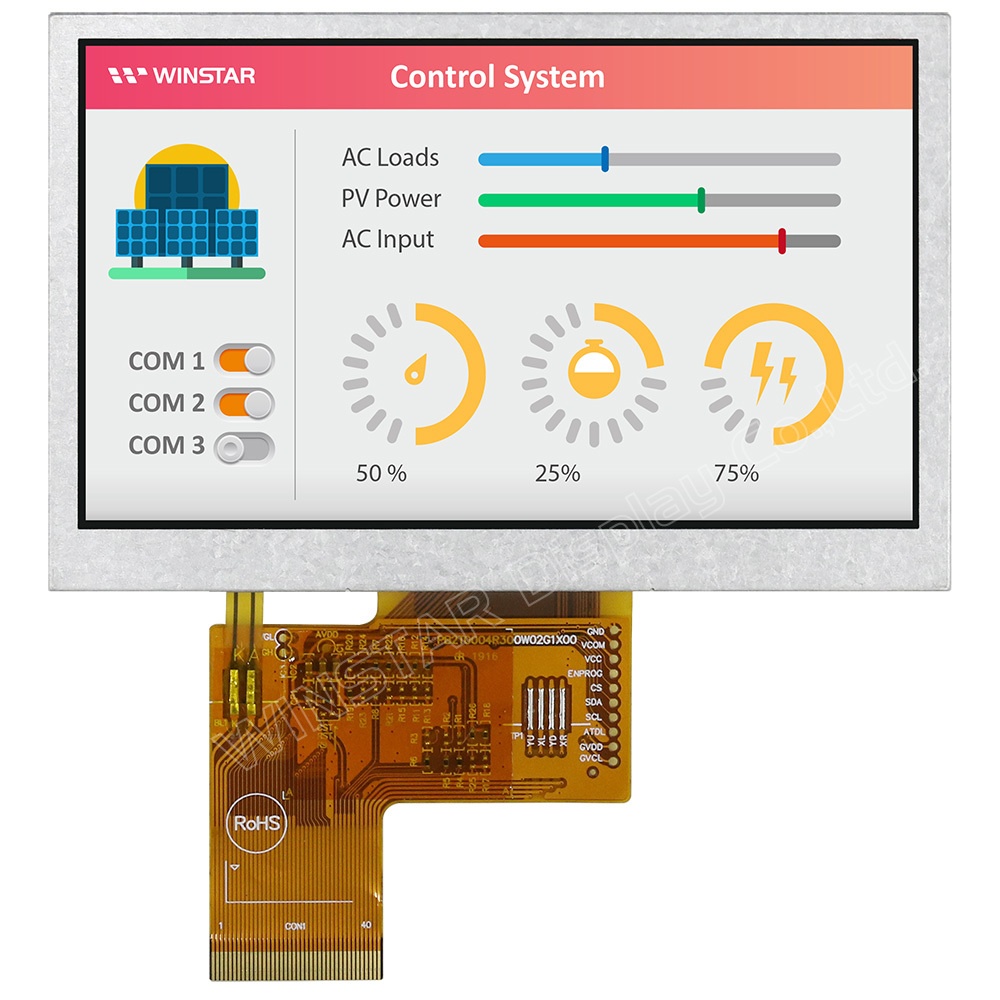

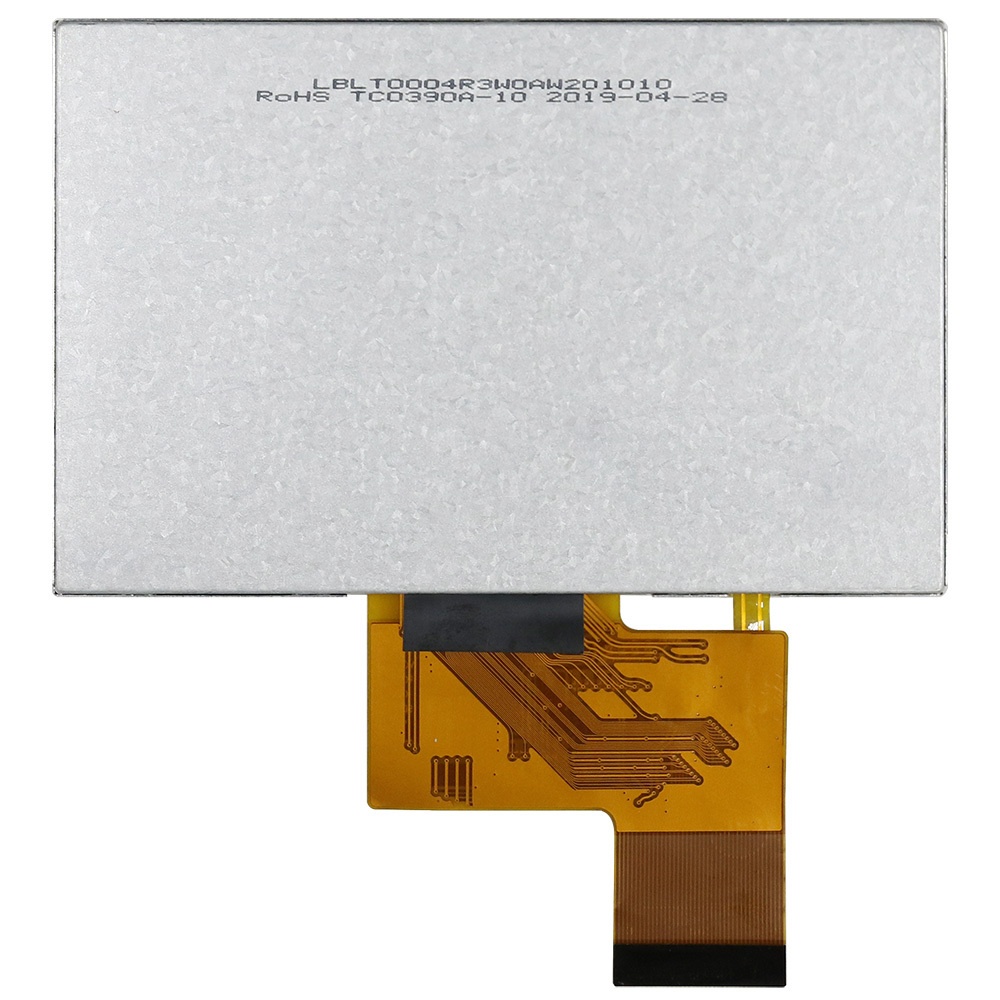

The WF43WSWAEDNN0 is a 4.3-inch TFT LCD module from Winstar, designed for use in industrial, automotive, and consumer electronics applications.
Its key technical specifications include:
Its key technical specifications include:
- Display size: 4.3 inches diagonal
- Resolution: 480 x 272 pixels (WQVGA)
- Display type: Monochrome transmissive TFT with white LED backlight
- Interface: 24-bit RGB parallel interface
- Viewing angles: 70°/70°/50°/70° (Left/Right/Up/Down)
- Brightness: 800 cd/m² (typical)
- Contrast ratio: 500:1 (typical)
- Response time: 10/15 ms (typical rise/fall)
- Operating temperature: -20°C to 70°C
- Storage temperature: -30°C to 80°C
- Module dimensions: 105.5 mm x 67.2 mm x 4.05 mm
With its high brightness and robust design, the WF43WSWAEDNN0 is optimized for industrial environments and applications that require clear readability in varying lighting conditions. Its compact size and wide temperature range make it a reliable choice for embedded systems and control interfaces.
