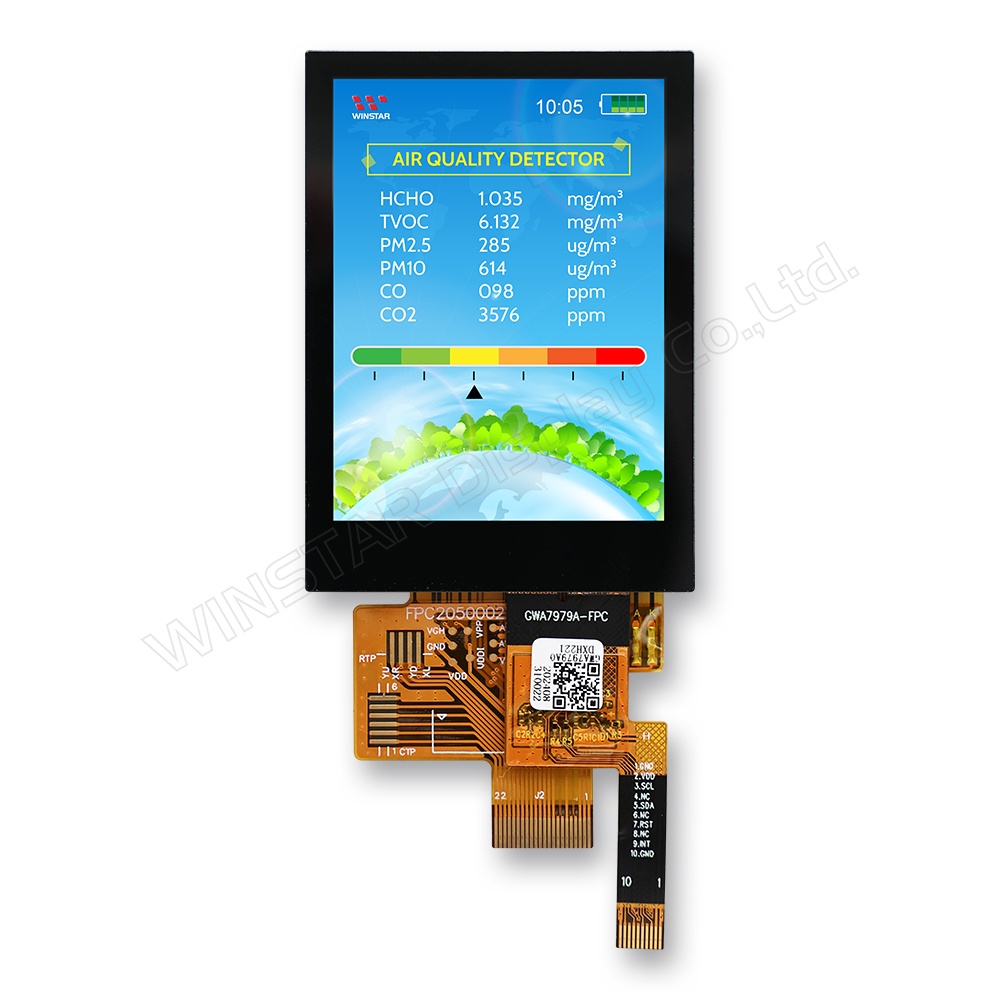

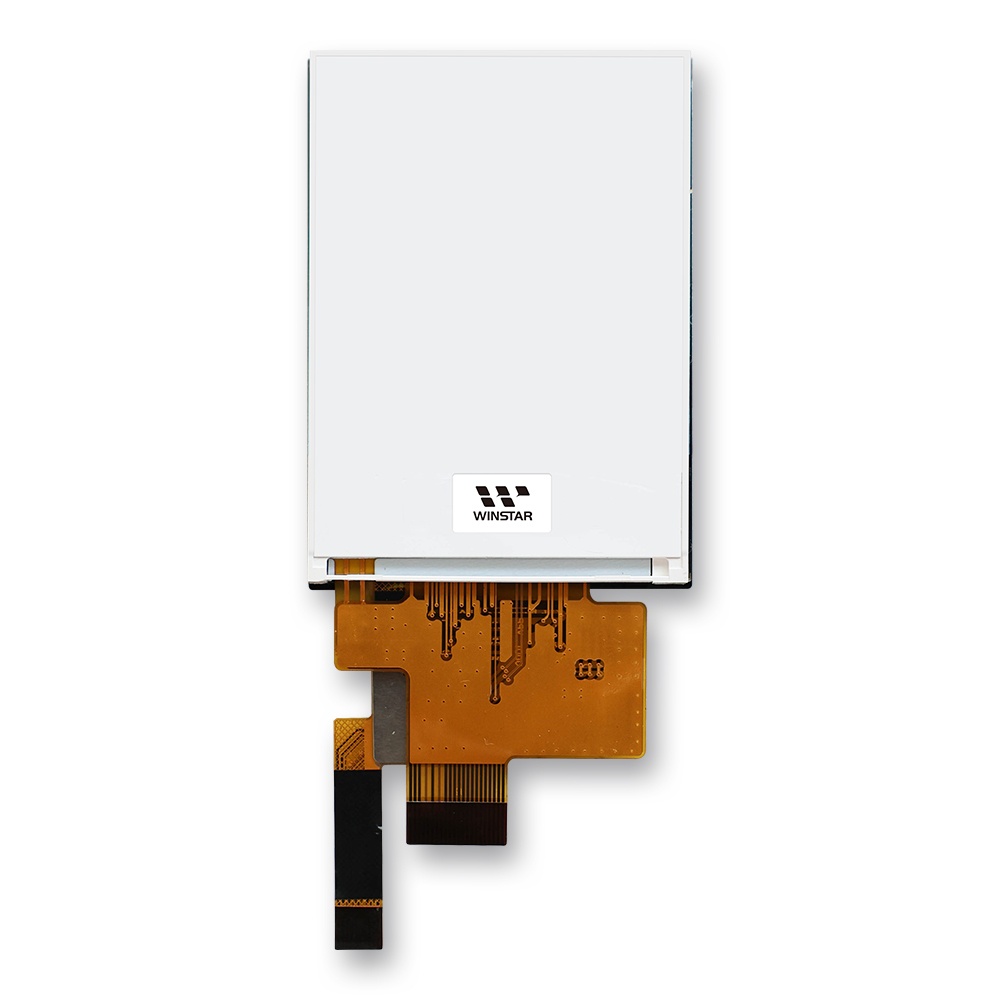

WINSTAR: 2.4-inch MIPI IPS TFT LCD with Projected Capacitive Touch - WF24LTYAJMNG0
Files
WINSTAR's WF24LTYAJMNG0 Portrait Mode display supports 1-Lane MIPI with it's built-in ST7785MA Driver IC. This 2.4inch IPS panel provides a wide viewing angle of 80° to all sides. The Touch IC CF1124 is using I2C interface to detect 1-Finger input.
Specifications:
- Size: 2.4"
- Resolution: 240×320 dots
- View Direction: IPS
- Interface: MIPI
- Driver IC：ST7785MA
- Control-Board: No
- Brightness(cd/m²): 400
- Frame Through Hole: No
- Touch Screen : Projected Capacitive Touch Panel (PCAP)
- Detect Point : 1 Finger
