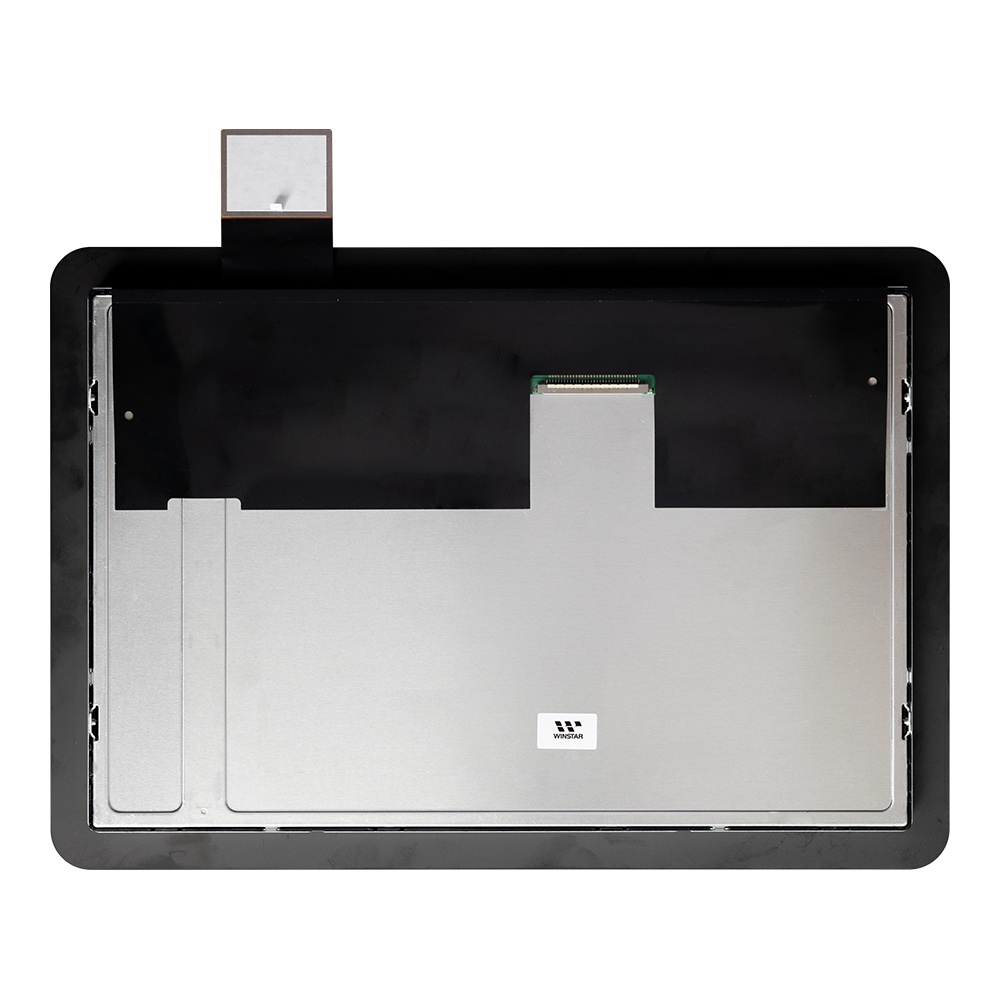

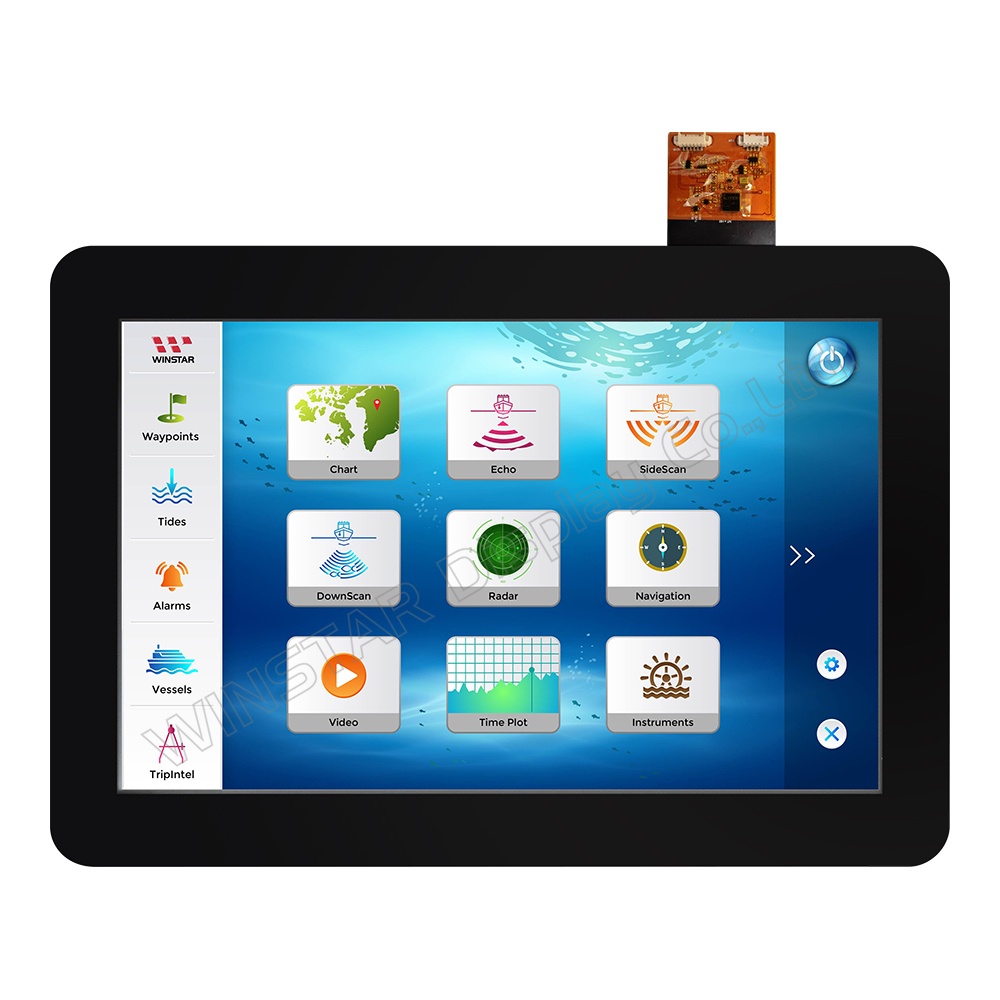

WINSTAR: 12.1" 1280x800 LVDS IPS TFT LCD Module with Capacitive Touch WF121BTXAPLNBA
Files
The WF121BTXAPLNBA is a high-performance display module from Winstar, designed to deliver exceptional visual clarity and reliability in a compact form factor. This display is ideal for applications requiring a high-resolution screen and robust performance in various lighting conditions. Below are the key technical specifications and features of the WF121BTXAPLNBA:
Applications
The WF121BTXAPLNBA display is suitable for a wide range of applications, including:
Summary
The WF121BTXAPLNBA Winstar Display offers high resolution, excellent brightness, and wide viewing angles, making it an ideal choice for various industrial and commercial applications. Its robust construction and long backlight life ensure reliability and longevity in demanding environments.
Applications
The WF121BTXAPLNBA display is suitable for a wide range of applications, including:
- Medical Devices
- Industrial Control Panels
- Automotive Displays
- Consumer Electronics
- Smart Home Devices
Summary
The WF121BTXAPLNBA Winstar Display offers high resolution, excellent brightness, and wide viewing angles, making it an ideal choice for various industrial and commercial applications. Its robust construction and long backlight life ensure reliability and longevity in demanding environments.
Technical Parameters
- Size : 12.1-inch
- Resolution : 1280x800 dots
- View Direction : IPS
- Interface : LVDS
- Driver IC : EK77526AHI205A
- Control-Board : No
- Brightness (cd/m²) : 300
- Frame Through Hole : No
- Touch Screen : Projected Capacitive Touch Panel (PCAP)
- Detect Point : 10 Fingers
