Trasna expands its roadmap with the new Adam-R11 Cat 1bis module family
Files

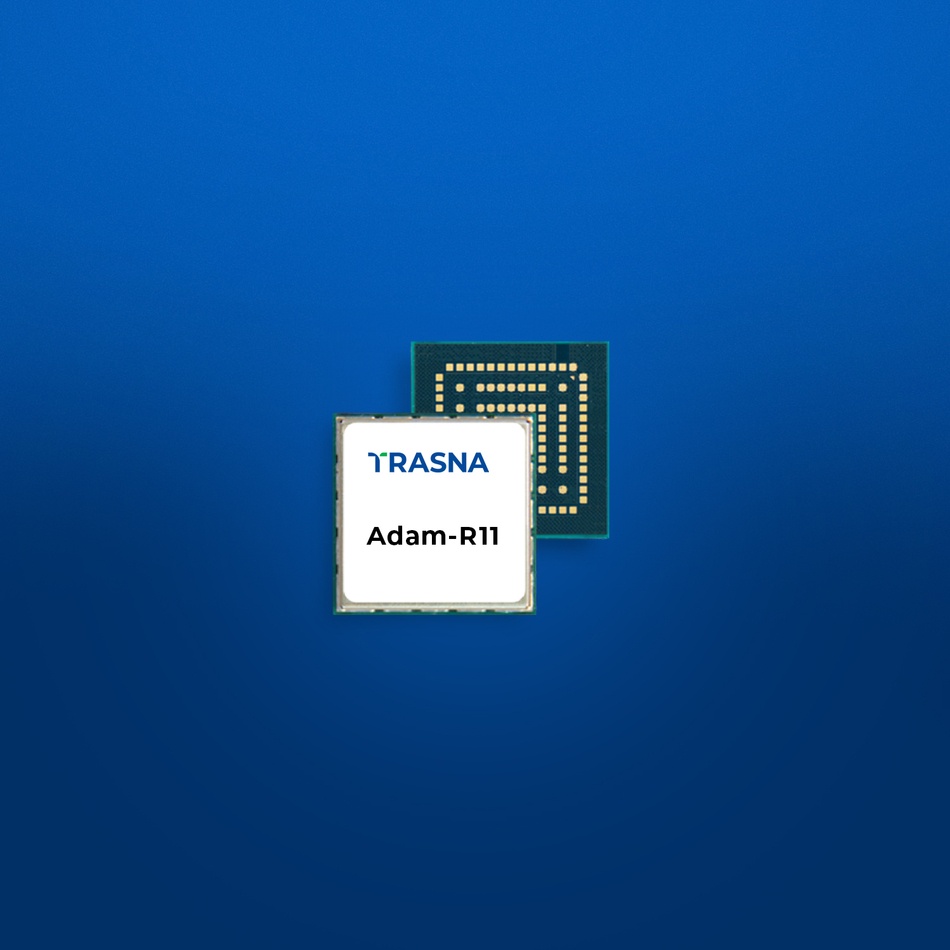

Trasna Adam-R11 LTE Cat 1bis Module
Trasna has launched the Adam-R11, a new LTE Cat 1bis module designed for IoT applications with medium data rates, global or regional coverage, and efficient power consumption.
The Adam-R11 module features a compact 18 x 18 x 2.2 mm footprint in LGA design, pin-compatible with the Lexi series for scalable product development. It supports LTE Cat 1bis connectivity with downlink speeds up to 10 Mbps and uplink up to 5 Mbps across a broad range of LTE FDD and TDD bands.
Key features include:
- Hybrid Positioning: Integrated Wi-Fi scanning for indoor/outdoor tracking, with optional CellLocate integration.
- Energy Efficiency: eDRX, PSM, and deep-sleep modes to extend battery life in battery-powered applications.
- eSIM Option: Optional embedded eSIM for seamless out-of-the-box connectivity, compliant with GSMA SGP.32 for IoT Remote SIM Provisioning.
- Security and Reliability: Secure boot, TLS 1.3, firmware updates via UART, USB, or FOTA, and durability in industrial environments from -40 °C to +85 °C.
- Interfaces: Dual UART, USB, 10 GPIOs, and support for 1.8 V/3.0 V SIM cards with toolkit functions.
- Software Stack: Rich protocols including MQTT, HTTP, FTP, TCP/IP, UDP, IPv4/IPv6, and Bearer Independent Protocol.
- Global/Regional Variants: Certified for global, EMEA, APAC, and Brazil deployments with approvals such as FCC, ISED, RED, NCC, and Anatel.
Applications and Benefits
The module addresses reliable connectivity needs in IoT, particularly for migrating from legacy 2G/3G systems. With global shutdowns accelerating—131 networks planned by 2030 and 61 by the end of 2025—it provides an efficient upgrade path that minimizes costs and regulatory hurdles.Ideal applications include:
- Asset tracking and logistics, leveraging precise location and low power for extended operation.
- Fleet management and telematics for real-time data transmission.
- Health and wellness monitoring, including wearables with long battery life.
- Smart metering in infrastructure and safety devices for emergency response.
Product Variants and Specifications
Trasna offers the Adam-R11 in two main variants, differing in coverage and bands. Both share standard-grade qualification, lead-free construction, and RoHS compliance.|
Variant |
Regions |
LTE FDD Bands |
LTE TDD Bands |
Certifications |
eSIM Option |
|---|---|---|---|---|---|
|
Adam-R11001D |
Global |
1, 2, 3, 4, 5, 7, 8, 12, 20, 28, 66 |
34, 38, 39, 40, 41 |
FCC, ISED, RED, NCC, Anatel |
Optional |
|
Adam-R11801D |
EMEA, APAC, Brazil |
1, 3, 5, 7, 8, 20, 28 |
34, 38, 39, 40, 41 |
RED, NCC, Anatel |
Optional |
The Adam-R11 advances cost-effective, secure IoT connectivity, aiding the shift from outdated networks to future-proof systems. It can serve as a cost-effective alternative for modernizing 2G/3G designs, as these legacy networks are being phased out worldwide to allocate spectrum for 4G and 5G. Contact SE Spezial-Electronic for integration and availability details.
