ZENDE: Compact Multiband SMD GNSS Antenna for Precision Tracking
In the growing domain of location technologies, integrated antennas are key to accurate positioning in IoT, autonomous systems, and consumer devices. The ZENDE multiband GNSS antenna from SynZen Precision Technology provides a compact, high-performance option for embedding reliable location features, aiding sectors like automotive telematics and wearables in achieving robust signal reception amid space limitations.
Its slim 0.9 mm profile suits battery-powered gadgets, ensuring signal integrity without bulk.
Compact Design for Seamless GNSS Integration

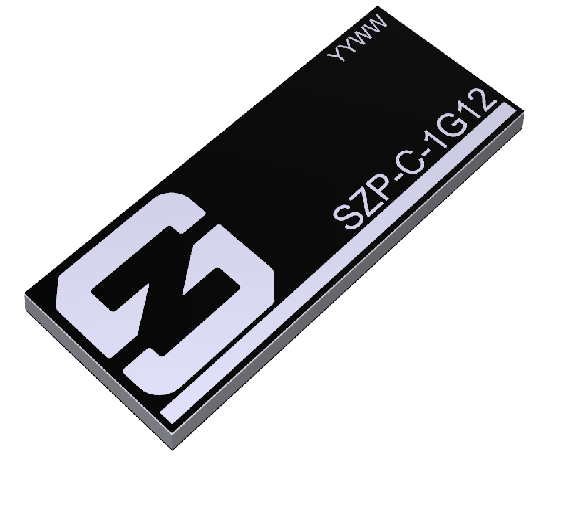

The ZENDE (Part Number: SZP-C-1G12) is an SMD antenna optimized for multiband GNSS, covering global constellations for precise data in standard GPS or RTK applications. Its multiband support spans 1164-1300 MHz and 1559-1610 MHz, including GPS/QZSS L1/L2/L5, Galileo E1/E5a/E5b/E6, GLONASS G1/G2/G3, BeiDou B1/B2a/B2b, and IRNSS L5. This mitigates multipath issues in urban areas, with tape-and-reel packaging enabling automated assembly for high-volume production.Technical Specifications at a Glance
The table below outlines ZENDE's key specs for quick reference in constrained designs.|
Specification |
Details |
|---|---|
|
Part Number |
SZP-C-1G12 |
|
Frequency Bands |
1164-1300 MHz; 1559-1610 MHz |
|
Supported Constellations |
GPS/QZSS (L1/L2/L5), |
|
Topology |
SMD Antenna |
|
Dimensions |
25.0 x 10.0 x 0.9 mm |
|
Mounting |
Surface-mount (SMD) |
|
Packaging |
Tape and reel |
|
Environmental Suitability |
Compatible with resin/potting sealing |
Its slim 0.9 mm profile suits battery-powered gadgets, ensuring signal integrity without bulk.
