SECO: Introducing the SOM-COMe-BT6-RK3588 - High‑Performance COM Express® Type 6 Module for industrial AI workloads

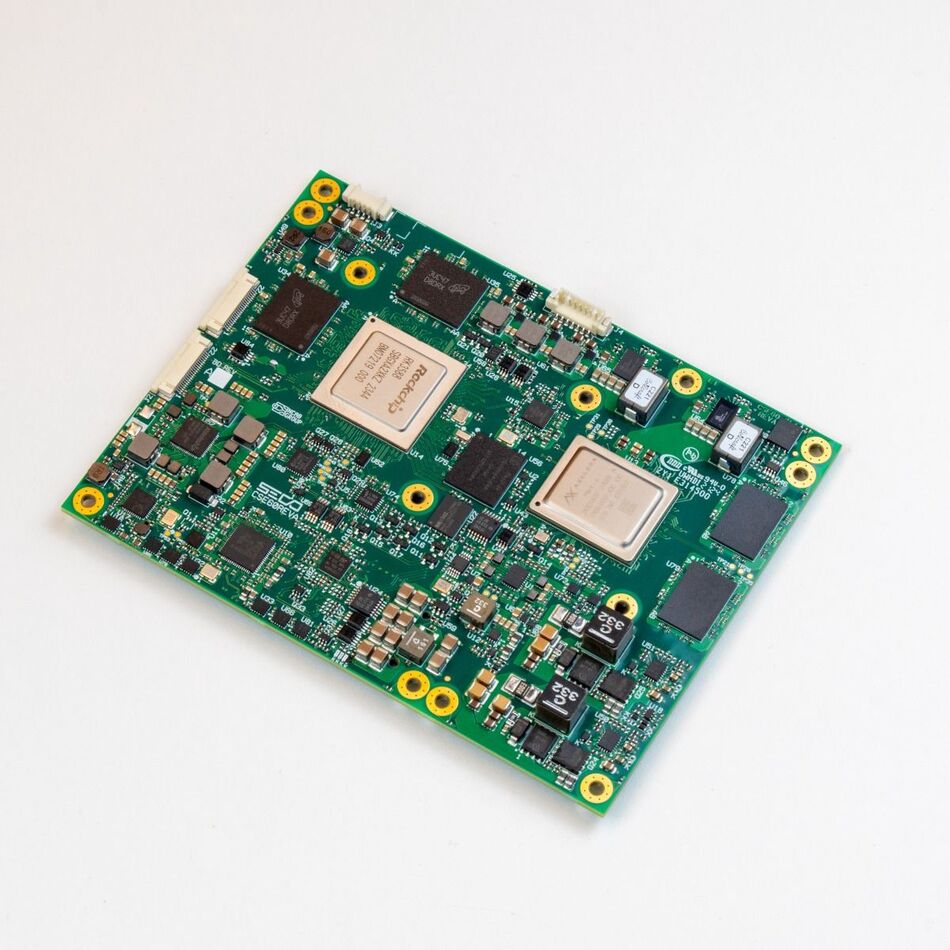

The SOM-COMe-BT6-RK3588 from SECO is a cutting-edge Computer-on-Module (COM) based on Rockchip's RK3588 SoC with additional Axelera AI Metis AIPU soldered on board. This COM Express® type 6 module with the components mentioned is ideal for industrial AI workloads. The Metis AIPU integration brings powerful computer vision capabilities to industrial automation, robotics, and security systems, enabling real-time object detection, defect inspection, and predictive maintenance.
Key Features
Key Features
- CPU: Rockchip RK3588 with additional Axelera AI Metis AIPU soldered on board
- Graphics: Arm Mali-G610 MC4 GPU, embedded VPU
- Connectivity: 1x NBase-T 1GbE; 2x USB Type-C with DP-Alt mode; 4x USB 5Gbps; 1x Hi-Speed USB; 4x PCI-e lanes
- Memory: Up to 32GB LPDDR5-3200 memory for CPU + 2GB LPDDRx-2133 for AIPU
The Rockchip RK3588 SoC, featuring a hybrid architecture with four high-performance Cortex-A76 cores, four energy-efficient Cortex-A55 cores, and three Cortex-M0 cores for real-time control tasks. Integrated within the SoC are also a GPU, a neural processing unit (NPU), and a video codec, enabling robust performance across multimedia and AI workloads. To further enhance AI capabilities, the module also includes the Axelera Metis AIPU, soldered directly on board. This dedicated AI accelerator delivers up to 120 TOPS of processing power, making the platform exceptionally well-suited for intensive edge inference and vision-based applications.
Main Fields of Application
The SOM-COMe-BT6-RK3588 is available in both the commercial (0°C to +60°C) and industrial (-40°C to +85°C)temperature ranges and measures 120 x 95 mm.
Further information can be found in the data sheet. If you are interested in the product, you are welcome to contact your SE Special Sales Representative or send an e-mail to vertrieb@spezial.com.
Main Fields of Application
- Industrial Automation
- Safety & Surveillance
The SOM-COMe-BT6-RK3588 is available in both the commercial (0°C to +60°C) and industrial (-40°C to +85°C)temperature ranges and measures 120 x 95 mm.
Further information can be found in the data sheet. If you are interested in the product, you are welcome to contact your SE Special Sales Representative or send an e-mail to vertrieb@spezial.com.
