Schaffner (TE Connectivity): New FN3297 / FN3298 3-Phase+N Filter Series for HVAC & Machinery

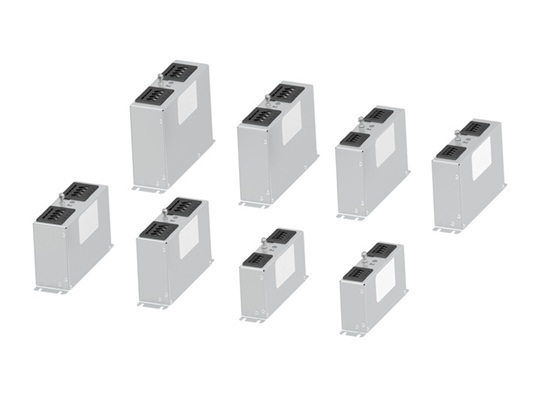

The FN3297 / FN3298 series from our partner Schaffner (now part of TE Connectivity) consists of two 3-Phase+N filter families with different performance levels, providing the right solution for a wide range of applications.
The FN3297 standard-performance version is designed for general machinery applications. For more demanding environments, such as systems with long motor cable lengths, multi-axis drives, or stringent EMC requirements, the FN3298 offers enhanced attenuation performance to ensure reliable compliance.
Key target markets include industrial machinery as well as heat pump and HVAC applications.
Both product families feature a certified 100 kA SCCR rating and are equipped with modern push-in terminals in a space-saving front-mount configuration. In addition, this series represents the first Schaffner book-style 3-Phase+N filter available under the TE Connectivity brand.
The FN3297 standard-performance version is designed for general machinery applications. For more demanding environments, such as systems with long motor cable lengths, multi-axis drives, or stringent EMC requirements, the FN3298 offers enhanced attenuation performance to ensure reliable compliance.
Key target markets include industrial machinery as well as heat pump and HVAC applications.
Both product families feature a certified 100 kA SCCR rating and are equipped with modern push-in terminals in a space-saving front-mount configuration. In addition, this series represents the first Schaffner book-style 3-Phase+N filter available under the TE Connectivity brand.
Key Advantages
These 3-Phase+N filters are designed for 480 VAC nominal operation, they support current ratings from 8 A to 36 A with a 100 kA SCCR and compliance to IEC and UL standards. These filters feature compact construction, front wiring, and withstand surge levels up to 4 kV (L-PE) with high insulation resistance.
If you are interested in samples or have other questions, please conact your SE Spezial Sales Representative or send a mail to vertrieb@spezial.com.
- Easy use in cabinet installations with need of short current rating
- Limited space needs on cabinet backpanel
- Easy and reliable connection style
- Fast connection and automated wiring possible
These 3-Phase+N filters are designed for 480 VAC nominal operation, they support current ratings from 8 A to 36 A with a 100 kA SCCR and compliance to IEC and UL standards. These filters feature compact construction, front wiring, and withstand surge levels up to 4 kV (L-PE) with high insulation resistance.
If you are interested in samples or have other questions, please conact your SE Spezial Sales Representative or send a mail to vertrieb@spezial.com.
