KEMET: X7R High Voltage VW80808 Series Automotive Grade MLCC
Files

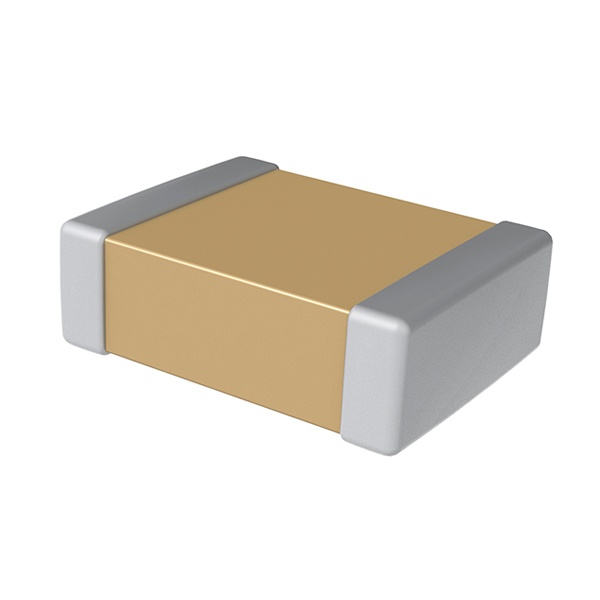

Introducing the new X7R high-voltage VW80808 series of automotive-grade MLCCs. These capacitors come in a range of case sizes, spanning from EIA 0603 to 1210, and offer capacitance values from 100pF to 0.1uF, with DC voltage ratings ranging from 500V to 1kV.
Designed with the demanding automotive environment in mind, these high-voltage VW80808 automotive-grade multilayer ceramic capacitors feature flexible terminations (FT-CAP) in an X7R dielectric. They are well-suited for a wide array of applications that demand reliable and proven performance in challenging conditions.
Whether installed under the hood or inside the cabin of a vehicle, these capacitors exemplify the robust and essential characteristics required to ensure the mission-critical safety and functionality of automotive subsystems. Furthermore, they adhere to AEC-Q200 and VW80808 specifications, meeting the stringent requirements of the automotive industry.
Highlights
Applications
Designed with the demanding automotive environment in mind, these high-voltage VW80808 automotive-grade multilayer ceramic capacitors feature flexible terminations (FT-CAP) in an X7R dielectric. They are well-suited for a wide array of applications that demand reliable and proven performance in challenging conditions.
Whether installed under the hood or inside the cabin of a vehicle, these capacitors exemplify the robust and essential characteristics required to ensure the mission-critical safety and functionality of automotive subsystems. Furthermore, they adhere to AEC-Q200 and VW80808 specifications, meeting the stringent requirements of the automotive industry.
Highlights
- VW80808 Specification Compliant
- AEC–Q200 automotive qualified
- Superior flex performance (5 mm minimum)
- DC voltage ratings of 500V, 630V ,1KV
- Lead (Pb)-Free, RoHS and REACH compliant
Applications
- Direct Battery/Power Circuits
- Filtering (power plane/bus)
- High Voltage Heater
- Inverter, DC/DC
- BMS
- Power Factor Correction
