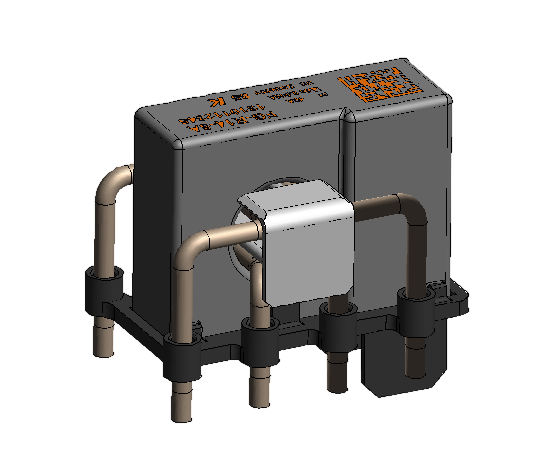

The FG-R14 series sensor is a high-sensitivity AC and DC leakage current sensor with individual open drain alarms and an analog output for leakage current indication. In addition, its integrated test coil can be initiated by a test input to perform a functional alarm test. By updating the ASIC from the conventional product, it is fully compliant with IEC62955.
Applications
Typical applications include residual current sensor for In- Cable Control and Protection Devices (IC-CPD) or Wallbox.
Applications
Typical applications include residual current sensor for In- Cable Control and Protection Devices (IC-CPD) or Wallbox.
Benefits
• Open-loop, fluxgate-based current sensor
• PCB mounting
• Digital output of fault detection
• Conforms to IEC 62752:2016/A1:2018 (FG-R14-6A and FG-R14-6B)
• Fully compliant to IEC 62955:20181 (FG-R14-6A and FG-R14-6B), can be used for RCD-MD
• RoHS compliant
• 3,000 A surge current capability
• Composed of AEC-Q certified parts
• Compliant with ASIL_B for Safety Element out of Context(SEooC)
The new current sensor from Kemet (Yageo) will be available from the beginning of quarter two. For general or sample inquiries, please contact your SE Account Manager or write to us at vertrieb@spezial.com.
