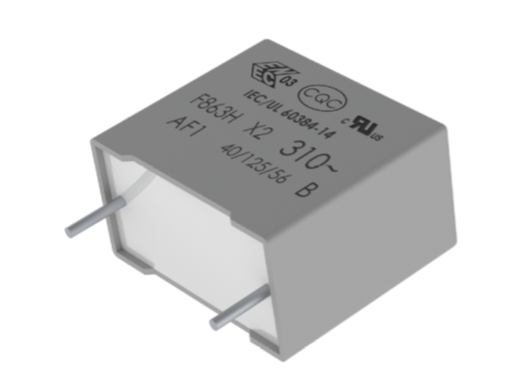

The F863H series features metallized polypropylene film enclosed in self-extinguishing resin within a UL94V–0 recognized box material. Designed to withstand harsh environments, it offers an elevated operating temperature of 125˚C and THB Grade IIB certification. Moreover, it complies with the rigorous Automotive Electronics Council's AEC–Q200 qualification standards.
Benefits
Applications
Typical applications include parallel connection and in series with the mains for indoor application, capacitive power supplies with special emphasis in automotive applications for severe ambient conditions.
- Approvals: ENEC, UL, cUL, CQC
- Rated voltage: 310 VAC 50/60 Hz
- Capacitance range: 0.1 – 15.0 µF
- Lead spacing: 15.0 – 37.5 mm
- Capacitance tolerance: ±20%, ±10%
- Climatic category: 40/125/56, IEC 60068-1
- Tape & Reel in accordance with IEC 60286-2
- RoHS compliant and lead-free terminations
- Operating temperature range of −40˚C to +125˚C
- 100% screening factory test at 1,900 VDC
- Automotive (AEC–Q200) grade
- THB Grade IIB (85C/85% RH 500h)
Applications
Typical applications include parallel connection and in series with the mains for indoor application, capacitive power supplies with special emphasis in automotive applications for severe ambient conditions.
- AC Input/Output EMI filtering
- EV charging station
