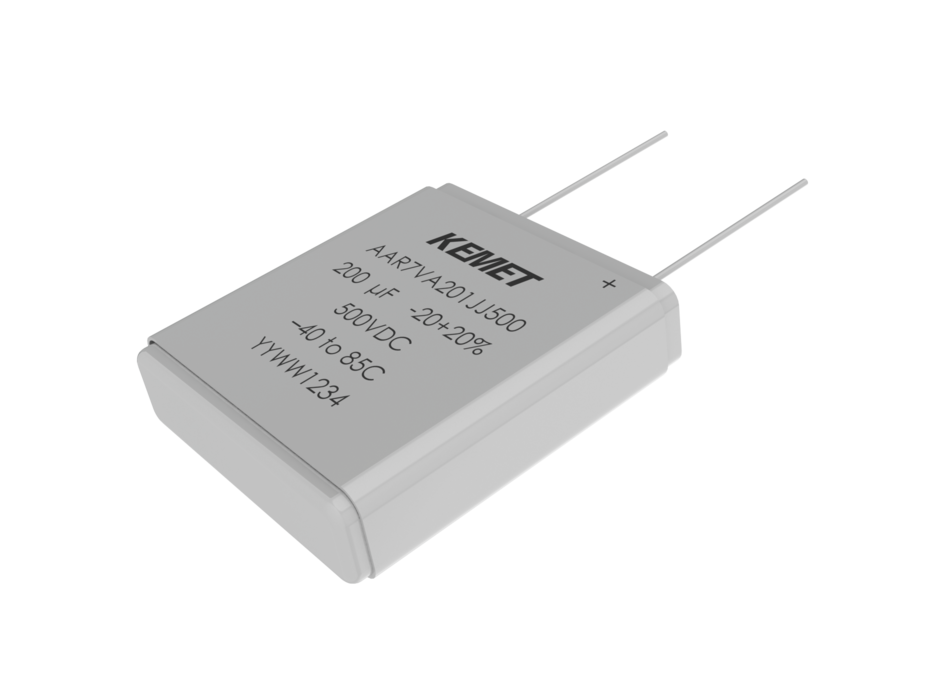

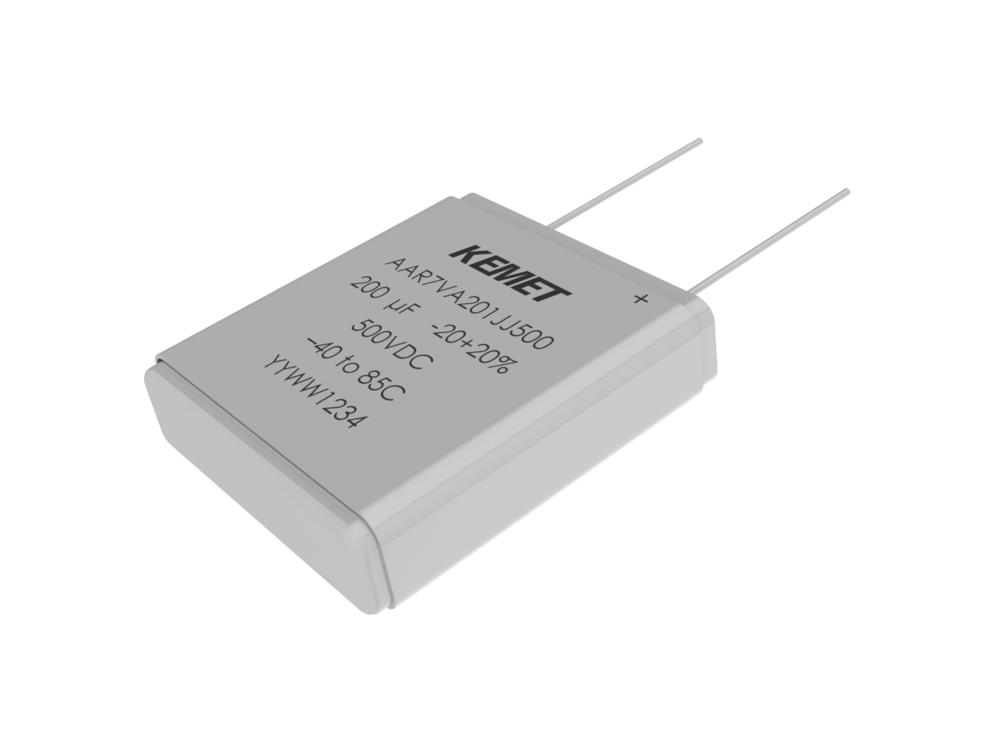

The AAR7V is an aluminum rectangular capacitor that meets AEC-Q200 qualifications for high voltage applications in the automotive industry. With a voltage rating of up to 500VDC, it boasts a high ripple current capability and strong resistance to vibrations. Operating at 85ºC, the AAR7V provides excellent volumetric efficiency and is designed for easy stacking into modules due to its low-profile rectangular shape. Its aluminum case's large surface area facilitates effective heat dissipation when used with a heat sink.
Benefits
Due to its rectangular shape, the AAR7V stands out for space and volumetric efficiency. Thermal management improvement allows for alternative DC-Link capacitor bank construction. Whether side by side or stacked, there is no wasted space between capacitors.
Benefits
- Low-profile rectangular shape
- Life of 10,000 hours at +85°C [(VR) and (IR) applied]
- AEC-Q200 qualified
- High vibration up to 40 g
- Excellent surge voltage capability
- Optimized designs available on request
Due to its rectangular shape, the AAR7V stands out for space and volumetric efficiency. Thermal management improvement allows for alternative DC-Link capacitor bank construction. Whether side by side or stacked, there is no wasted space between capacitors.
Applications
- Automotive
- On-Board Chargers
- Power Inverters
- Wall Boxes
