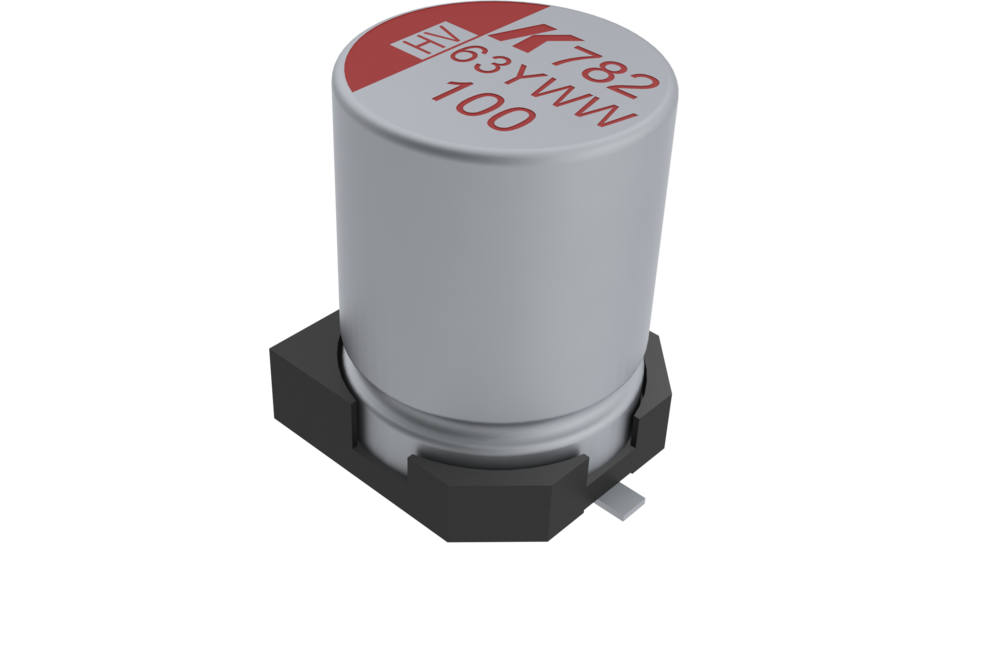

The A782 capacitor from KEMET is a surface mount conductive polymer hybrid capacitor renowned for its exceptional electrical performance. Enclosed in a cylindrical aluminum can with a high-quality rubber deck, its winding utilizes a highly conductive polymer (PEDOT/PSS) to ensure low ESR. This polymer system establishes an electrical pathway between the anodic oxide layer and the cathode via a mechanical separator - paper. Impregnated with liquid electrolyte, the A782 winding boasts self-healing capabilities. Its mechanical robustness makes it well-suited for mobile and automotive applications, capable of operating up to +135°C.
Features and Benefits
Applications
KEMET’s A782 is a series of high-performance surface mount hybrid capacitors. Due to its mechanical robustness, the A782 is suitable for use in mobile and automotive installations with extremely high demands and operation up to +135°C.
- Voltage Range: 25 - 63 VDC
- Capacitance Range: 68 - 420 µF
- Operating Temperature: -55 to +130°C
- Life: Up to 4,000 hours
- High temperature: 135ºC/4,000 hours
- High ripple current up to 3.4 A @135ºC

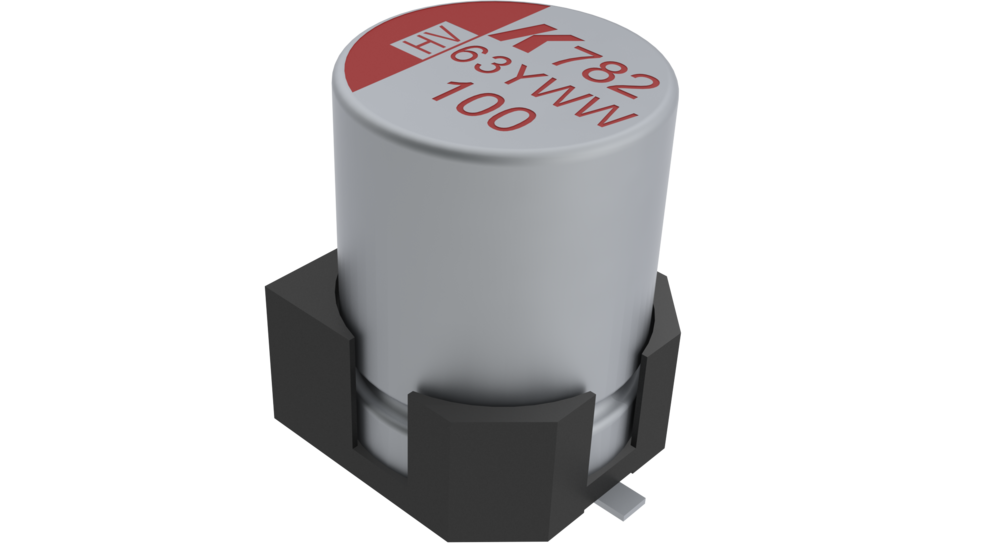

- High vibration resistance up to 30 g
- AEC-Q200 compliance
Applications
KEMET’s A782 is a series of high-performance surface mount hybrid capacitors. Due to its mechanical robustness, the A782 is suitable for use in mobile and automotive installations with extremely high demands and operation up to +135°C.
