Honeywell: Honeywell Announces The Product Line Extension Of ABP2 Series Board Mount Pressure Sensor

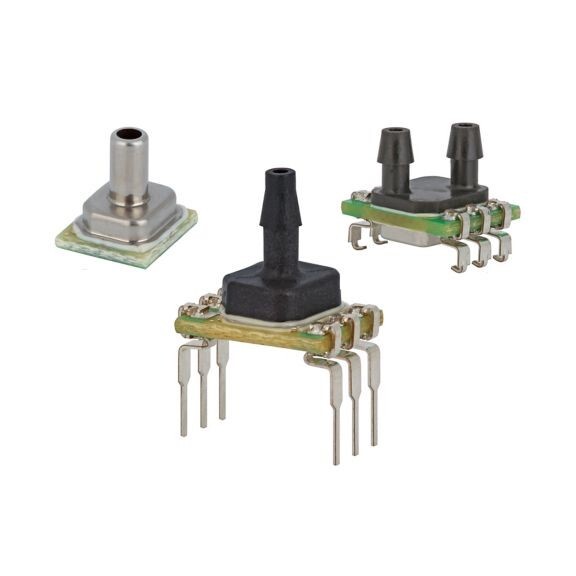

ABP2 Series, Board Mount Pressure Sensor for Industrial, Commercial, Medical & Transportation Applications
High Accuracy, Compensated, Amplified ±6 mbar to ±12 bar. ±600 Pa to ±1,2 MPa. ±2 inH2O to ±175 psi
Digital Output, Liquid Media Capable, And Food Grade Compatible For Medical And High End Consumer Appliances Market
The ABP2 Series are piezoresistive silicon pressure sensors offering a digital output for reading pressure over the specified full scale pressure span and temperature range. Their small size saves room on the PC board (PCB), simplifying the design in smaller and lower power devices.
The sensors are flexible and versatile, offering a variety of pressure units, types, and ranges, output options, and a wide operating and compensated temperature range. ABP2 series sensors use NSF-169, LFGB and BPA compliant materials which makes them suitable for use in food grade applications.
ABOUT THE ABP2 SERIES
The ABP2 Series provides calibrated digital output values for pressure and enhanced accuracy for medical and high end consumer appliance markets. The ABP2 Series is available in tube packaging. Pocket tape and reel packaging is available upon request.
POTENTIAL APPLICATIONS
- Medical: Ventilators/portable ventilators, CPAP, blood analysis, blood pressure monitoring, breast pumps, drug dosing, hospital beds, massage machines, oxygen concentrators, patient monitoring, sleep apnea equipment, urine analyzers and wound therapy
- Industrial: HVAC transmitters, life sciences, material handling, pneumatic control and regulation, process gas monitoring and valve positioning/positioners
- Commercial: Air beds, coffee makers, washing machines, level measurement, dish washers, vacuum cleaners, hand dryers and rice cookers
- Transportation: Air brakes, CNG monitoring, fork lifts and fuel level measurement
Key Features And Value To Customers
- Total Error Band ±1.5 %FSS
- Liquid media option: compatible with a variety of liquid media
- Long-term stability: ±0.2 %FSS
- High accuracy: ±0.25 %FSS BFSL
- Wide pressure range: ±6 mbar to ±12 bar. ±600 Pa to ±1,2 MPa. ±2 inH2O to ±175 psi
- High burst pressures
- Wide operating temperature range of -40°C to 110°C [-40°F to 230°F]
- Calibrated over wide temperature range of -40°C to 110°C [-40°F to 230°F]
- IoT (Internet of Things) ready interface
- Ultra-low power consumption (as low as 0.01 mW typ. average power, 1 Hz measurement frequency)
- Meets IPC/JEDEC J-STD-020E Moisture Sensitivity Level 1
- REACH and RoHS compliant
- Food grade compatible
- NSF-169, LFGB and BPA compliant materials
- Temperature output available
>>>Shop now Honeywell ABP2 Series<<<<
If the desired configuration is not available online, samples are required or you would like to enquire the parts, you can contact vertrieb@spezial.com directly.
