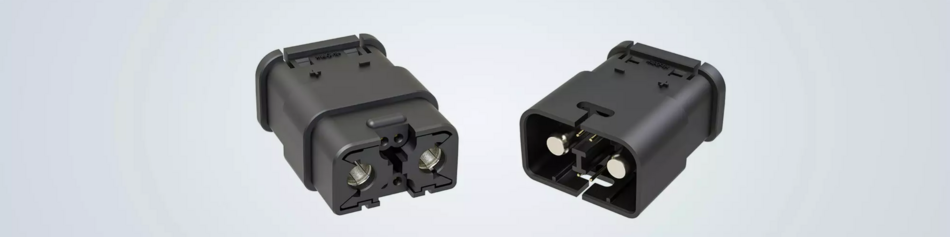

Harting: Han® MPC30 & MPC60 - Miniature Power Connectors for the Next Generation of UAVs & Mobile Robotics
Drones are no longer a niche technology, they have evolved into highly regulated, mission-critical platforms serving industries from agriculture and logistics to public safety and inspection. As UAV applications demand ever-greater performance in smaller, lighter packages, our partner HARTING has answered the call with two new industrial-grade connectors: the Han® MPC30 and Han® MPC60.
Engineered for SWaP — Size, Weight & Power
In UAV design, SWaP (Size, Weight and Power) is the decisive engineering constraint. Every gram and every cubic millimetre counts. The Han® MPC series was developed specifically to optimise these parameters without compromising on industrial-grade reliability.
| Feature | Han® MPC30 | Han® MPC60 |
| Continuous Current | Up to 30 A / 120 VDC | Up to 60 A / 120 VDC |
| Peak Current | 180 A for 10 seconds | ~350 A for 10 seconds |
| Crimp Contact Type | Han-Yellock® 4 mm² | Han® C 10 mm² |
| High-Speed Contacts | Up to 4 (gold-plated) | Up to 4 (gold-plated) |
| Data Protocol Support | DroneCAN | DroneCAN |
| Vibration & Shock | IEC 61373 Cat. 1B | IEC 61373 Cat. 1B |
| Protection Rating | IP40 (IEC 61529) | IP40 (IEC 61529) |
The Han® MPC connectors are the ideal interface at the heart of UAV power architectures, connecting batteries, Power Distribution Boards (PDB) and Electronic Speed Controllers (ESC). Additional housing variants and straight or angled PCB options enable flexible integration into virtually any UAV or mobile robot platform:
- Battery ↔ Power Distribution Board (PDB) connections
- PDB ↔ Electronic Speed Controller (ESC) links
- Ground vehicles and wheeled mobile platforms
- Humanoid and mobile robots
- Any space- or weight-constrained application requiring reliable power + data
Both MPC variants can accommodate up to four gold-plated har-speed contacts alongside the power contacts. This enables simultaneous data transmission using DroneCAN, a widely adopted protocol for communication between drone flight controllers and peripherals, all within a single, miniaturised connector housing. Gold- and silver-plated contact surfaces create gas-tight crimp connections that ensure stable electrical performance even under the harsh vibration, shock and temperature cycles typical of UAV operations.
Key Benefits
- Protection of critical infrastructure through connectivity solutions from the trusted European market leader in industrial connectors, with a diversified global sales and production structure
- High reliability thanks to crimp contacts with silver-plated and gold-plated surfaces
- High current transmission (30 A / 60 A variants)
- Maximum performance with minimal space requirements (higher current-carrying capacity and surge current)
- Signal integrity with up to 4 pins (DroneCAN)
- Faster installation thanks to easy handling
- Comprehensive documentation and specifications
Discover the complete Harting portfolio for UAVs in the attached file. For inquiries, samples, or further questions, please contact your SE Account Manager or send a message to vertrieb@spezial.com.
