DEGSON: E-Bike Connector, RM-EBBH-2006-M-1000-00A(H)
Files

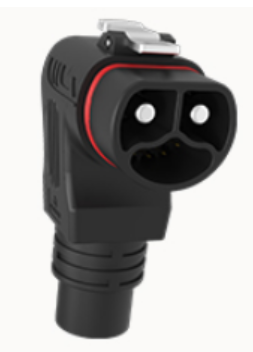

At the termination point of an electric motorcycle battery, you'll find a plug designed for both charging and discharging. It boasts a rated current of 100A to 120A, operates at a rated voltage of 72V DC, and can withstand voltages of up to 1500V AC. It exhibits excellent insulation resistance exceeding 500M Ω and achieves an impressive protection grade of IP67 when connected.
This rugged plug is built to last, with a mechanical life expectancy of over 3000 cycles. Its secure connection ensures a pull-out force of more than 20N. It performs reliably across a wide temperature range, from -40 to 105 ℃, and can endure a 72-hour salt spray test. Additionally, it meets stringent flame retardant standards with a UL94-V0 rating.
Furthermore, it adheres to environmental standards, complying with RoHS regulations.
Product advantages
This rugged plug is built to last, with a mechanical life expectancy of over 3000 cycles. Its secure connection ensures a pull-out force of more than 20N. It performs reliably across a wide temperature range, from -40 to 105 ℃, and can endure a 72-hour salt spray test. Additionally, it meets stringent flame retardant standards with a UL94-V0 rating.
Furthermore, it adheres to environmental standards, complying with RoHS regulations.
Product advantages
- Compact structure and high space utilization
- Adopt bayonet locking structure to prevent accidental unlocking
- Direct plug operation, convenient and fast
- Signal pin No.：0~8 pins
- Multiple auditory and visual feedback are inserted in place
- Beautiful appearance, fit human functional design
