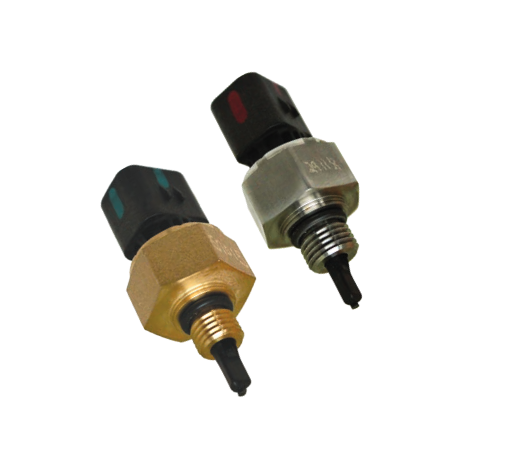

Combination Pressure and Temperature Sensor
Overview
Designed for heavy duty transportation applications, the Combination Pressure and Temperature Sensor is suitable for gas and fluid applications. The sensor provides separate analog outputs for pressure and temperature. Using proven design blocks from current production sensors, a rugged sensor, capable of withstanding harsh environments, is available.
Features
- Operating Temperature: -40°C to 135°C with excursions up to 150°C
- Tyco 4-pin connector
- PPS thermoplastic material
- Temperature Response Time: <12 seconds in air flow of 6 m/s to 63% of input temperature
- Pressure Response Time: <10 ms to 63% of step change input
Applications
- Engine coolant
- Engine oil
- Engine fuel
- Engine intake air
- Refrigerant
