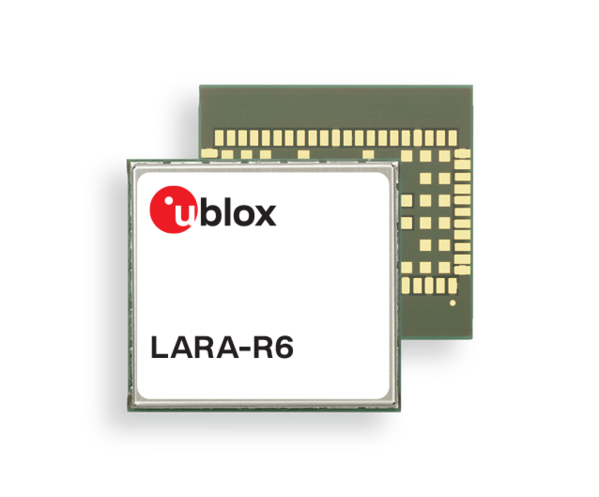

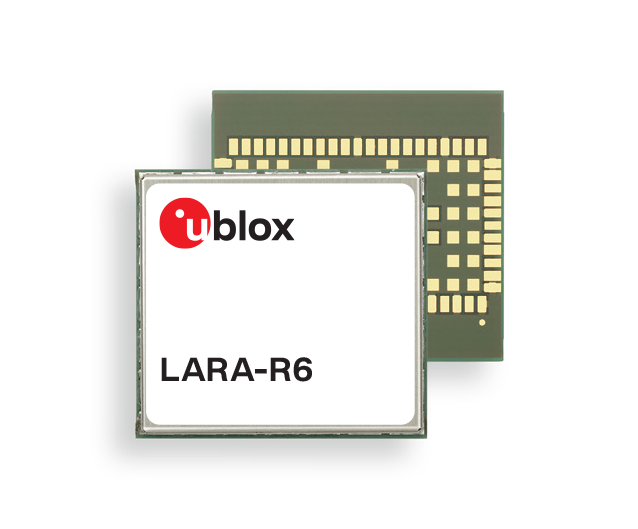

LARA-R6801-00B
u-blox*LTE/3G/GSM * EMEA/APAC module* professional-grade*LGA*25x36mm*150pcs/reel
Use restriction: 4G M2M
IPR coverage: Premium
Please contact sales for a different use restriction/coverage option.
Use restriction: 4G M2M
IPR coverage: Premium
Please contact sales for a different use restriction/coverage option.
Manufacturer Item No.:
LARA-R6801-00B
Item number:
LARA-R6801-00B
from 1 pieces
76,10 € / 1 pieces
from 10 pieces
57,08 € / 1 pieces
from 50 pieces
43,90 € / 1 pieces
from 100 pieces
39,36 € / 1 pieces
Add to Favorites
- Reduce logistics complexity with three regional product variants and extensive MNO certifications
- Any region, any band, any technology for simple roaming anywhere in the world
- World's smallest LTE Cat 1 module with global coverage, ideal for size-constrained devices
- Receive-diversity for reliable performance in difficult conditions
- Secure by design to always keep your device running and updated
| Form factor: | LARA |
|---|---|
| Cellular Regions: | EMEA, APAC, South / Central America, Japan |
| Datarate: | Cat 1 (10 Mbit/s DL, 5 Mbit/s UL) |
| LTE Bands: | 1, 18, 19, 2, 20, 26, 28, 3, 4, 5, 7, 8 |
| UMTS Bands: | 1900, 2100, 850, 900 |
| GSM Bands: | Quad-band |
| Voltage: | 3.3 - 4.5 VDC |
| Temperature: | -40 to +85 °C |
| Dimensions: | 26 x 24 x 2.6 mm |
| UART: | 2 |
| USB: | 1 |
| I2C: | 1 |
| GPIO: | 9 |
| I2S: | 1 |
